DAC7617UB - Texas Instruments

Description: Quad, Serial Input, 12-Bit, Voltage Output Digital-To-Analog Converter

Download DAC7617UB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

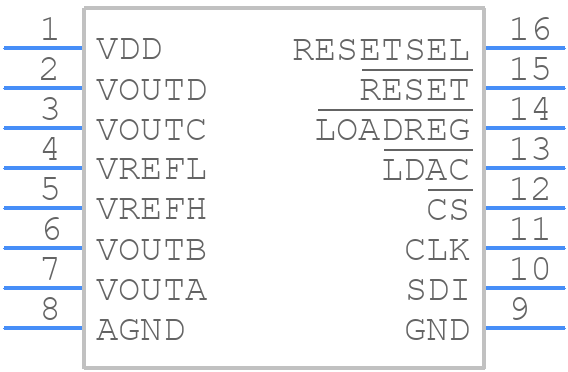

DAC7617UB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7617UB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
DAC7617UB - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

DAC7617UB Details

  • Manufacturer Part Number:

    DAC7617UB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.089 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DAC7617UB Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC7617UB is 5mA. This is not explicitly stated in the datasheet, but it can be inferred from the output impedance and voltage range specifications.
  • To ensure monotonicity of the DAC output, it is recommended to use a stable and low-noise voltage reference, and to follow proper PCB layout and decoupling guidelines. Additionally, the DAC7617UB has a built-in monotonicity feature that can be enabled by setting the MON bit in the control register.
  • The settling time of the DAC output is typically around 10-15 μs, but this can vary depending on the output voltage range, load capacitance, and other factors. It is recommended to consult the datasheet and application notes for more detailed information.
  • Yes, the DAC7617UB can be used in a ratiometric configuration, where the output voltage is proportional to the reference voltage. This can be useful in applications where the reference voltage is derived from a power supply or other voltage source.
  • The DAC7617UB has a built-in power-on reset (POR) circuit that resets the device to a default state when the power supply voltage is applied. To handle the POR, it is recommended to use a power supply with a slow rise time (e.g. 10-100 ms) and to ensure that the digital interface is not active during the POR period.
