The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the internal analog and digital circuits are properly initialized.
The DAC7624U/1K has a rail-to-rail output stage, which means the output voltage range is from VSS (typically 0V) to VCC (typically 5V). However, to ensure linearity and accuracy, it's recommended to operate the output within 10% of the supply rails (e.g., 0.5V to 4.5V for a 5V supply).
The settling time of the DAC7624U/1K is typically around 10 μs to 15 μs, depending on the output voltage and load conditions. This means that after a code change, the output voltage may take up to 15 μs to settle to its final value. System designers should ensure that their system can accommodate this settling time to avoid errors or inaccuracies.
To minimize noise and glitches, it's essential to follow proper PCB layout and design practices, such as separating analog and digital grounds, using decoupling capacitors, and minimizing digital noise coupling to the analog output. Additionally, consider using a low-pass filter or a buffer amplifier to further reduce noise and glitches.
The DAC7624U/1K supports clock frequencies up to 40 MHz. However, the maximum clock frequency may be limited by the system's digital interface and the desired data transfer rate. System designers should ensure that their system can accommodate the required clock frequency and data transfer rate to achieve the desired performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7624U/1K Overview

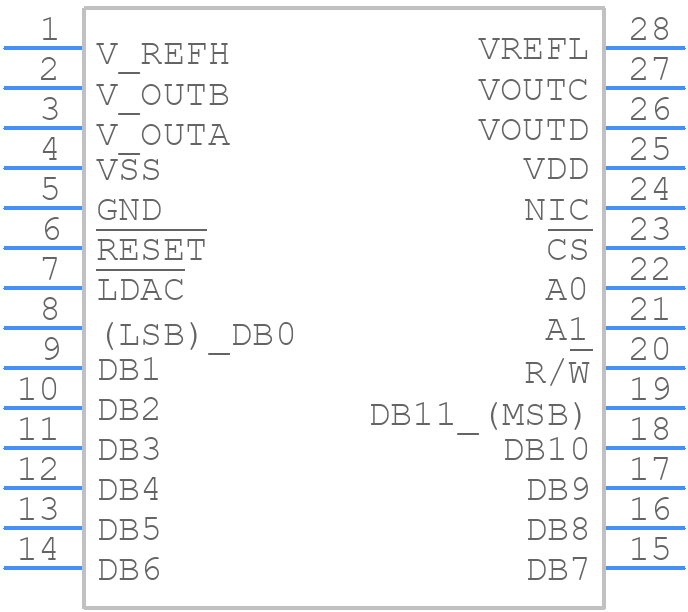

Use the download button to access the DAC7624U/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC76,
or try a keyword search, such as Digital to Analog Converters
