The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the analog and digital circuits power up in a controlled manner.
To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the Texas Instruments REF5025. Additionally, ensure that the output voltage is buffered using an op-amp, such as the OPA333, to prevent loading effects.
The maximum clock frequency that can be used with the DAC7678SPW is 40 MHz. However, it is recommended to use a clock frequency of 20 MHz or less to ensure reliable operation and minimize jitter.
The SYNC pin is used to synchronize the DAC's output with an external clock signal. To use the SYNC pin, connect it to an external clock signal, and ensure that the clock signal is synchronized with the DAC's internal clock. This ensures that the DAC's output is synchronized with the external clock signal.
To minimize noise and ensure reliable operation, it is recommended to use a four-layer PCB with a solid ground plane, and to keep the analog and digital signal traces separate. Additionally, use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND, and a bypass capacitor (e.g., 10 μF) between AVCC and GND.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DAC7678SPW Overview

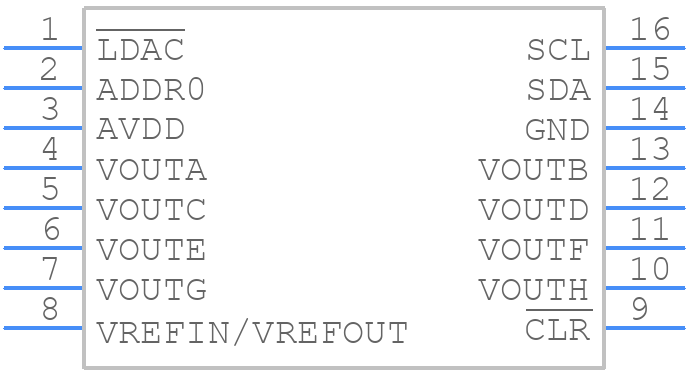

Use the download button to access the DAC7678SPW schematic symbol, PCB footprint, and 3D model.
