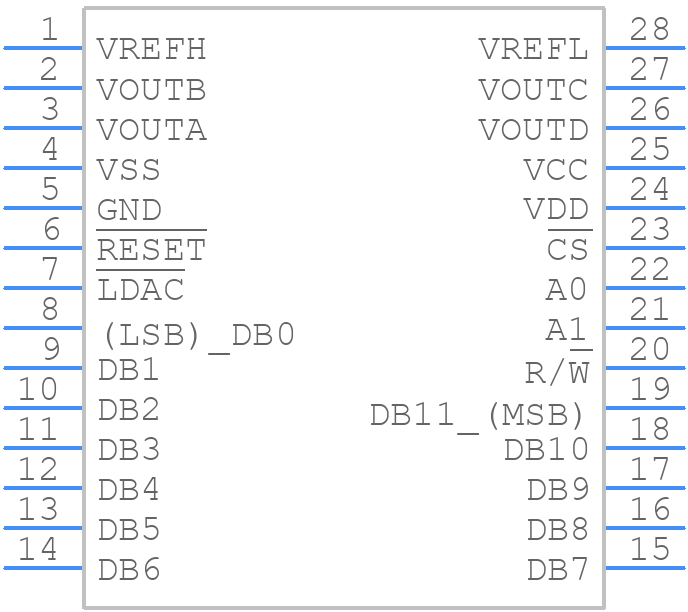

DAC7725U - Texas Instruments

DAC7725U Details

• Manufacturer Part Number:

  DAC7725U

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  28

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Output Voltage-Max:

  10 V

• Analog Output Voltage-Min:

  -10 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  17.9 mm

• Linearity Error-Max (EL):

  0.0488%

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.1 MHz

• Seated Height-Max:

  2.65 mm

• Settling Time-Max:

  10 µs

• Settling Time-Nom (tstl):

  10 µs

• Supply Current-Max:

  8.5 mA

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
