The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures proper operation and prevents damage to the device.
The DAC7742Y/250 has a rail-to-rail output stage, which means the output voltage range is from VSS (typically 0V) to VCC (typically 5V). However, it's recommended to limit the output voltage range to ensure the output amplifier remains in its linear region. Typically, this means limiting the output voltage to VCC - 0.5V to VSS + 0.5V.
Clock jitter can affect the DAC's performance by introducing noise and distortion in the output signal. It's recommended to use a low-jitter clock source and to keep the clock signal path as short as possible to minimize jitter. Additionally, the DAC7742Y/250 has a built-in clock jitter attenuator that can help reduce the effects of clock jitter.
To implement a bipolar output voltage range, you can use an external op-amp to invert and scale the output voltage. For example, you can use an op-amp in an inverting configuration with a gain of -1 to invert the output voltage, and then add an offset voltage to shift the output voltage range to the desired bipolar range.
It's recommended to keep the analog and digital signal paths separate and to use a star-ground configuration to minimize noise and crosstalk. The analog signals should be routed close to the analog ground plane, while the digital signals should be routed close to the digital ground plane. Additionally, it's recommended to use a solid ground plane and to avoid routing signals under the device's pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7742Y/250 Overview

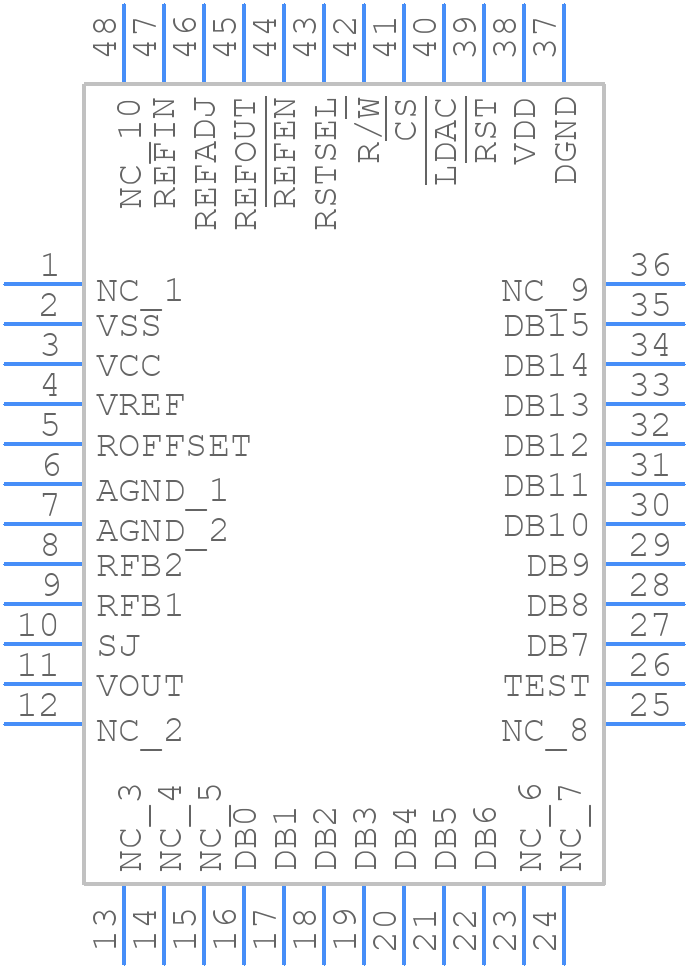

Use the download button to access the DAC7742Y/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC77,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
