The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
The output voltage range of the DAC7742YB/250 is dependent on the VREF input voltage. The output voltage range is 0 to VREF, so ensure that VREF is set to the desired maximum output voltage. Additionally, consider using an output buffer amplifier if the output current or voltage swing requirements exceed the DAC's capabilities.
The DAC7742YB/250's performance is affected by temperature, with changes in offset error, gain error, and linearity. Ensure that the device is operated within the specified temperature range (-40°C to 125°C) and consider using temperature compensation techniques if high accuracy is required over a wide temperature range.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and decoupling power supplies. Additionally, consider using shielding, filtering, and bypass capacitors to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
The recommended layout and routing for the digital interface involves using short, matched traces, and avoiding vias and right-angle turns. Ensure that the digital interface signals are routed away from noisy signals and that the clock signal is routed closest to the device. Additionally, consider using a ground plane under the digital interface signals to reduce noise and crosstalk.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7742YB/250 Overview

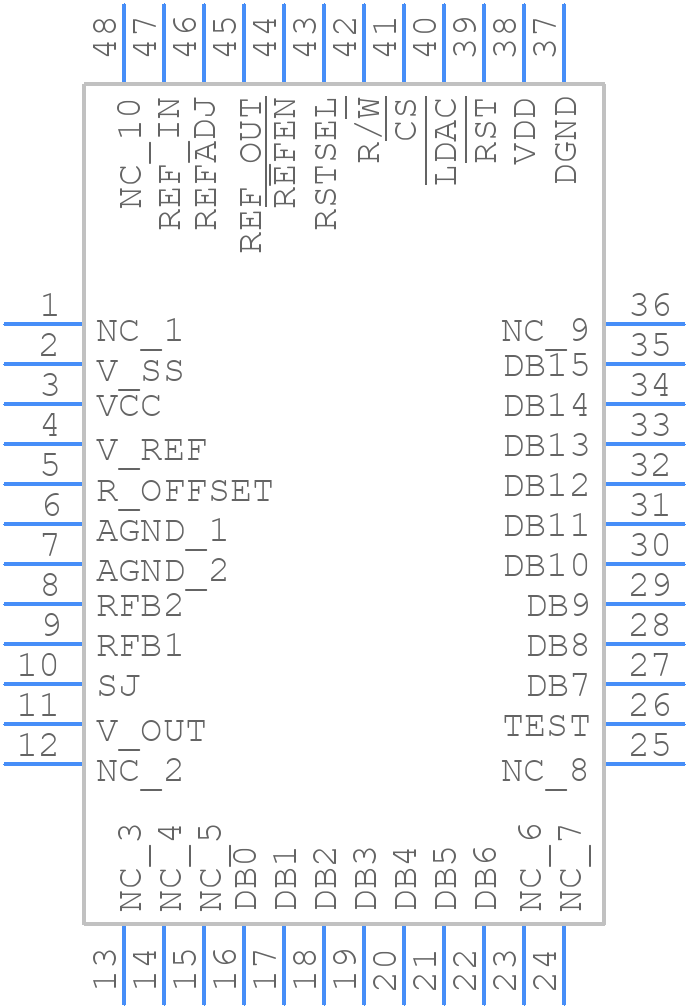

Use the download button to access the DAC7742YB/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC77,
or try a keyword search, such as Digital to Analog Converters
