Technical Content
Part Image

DAC7760IRHAR - Texas Instruments

Description: 12-bit, single-channel, programmable current/voltage output DAC for 4-20mA current loop applications

Download DAC7760IRHAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

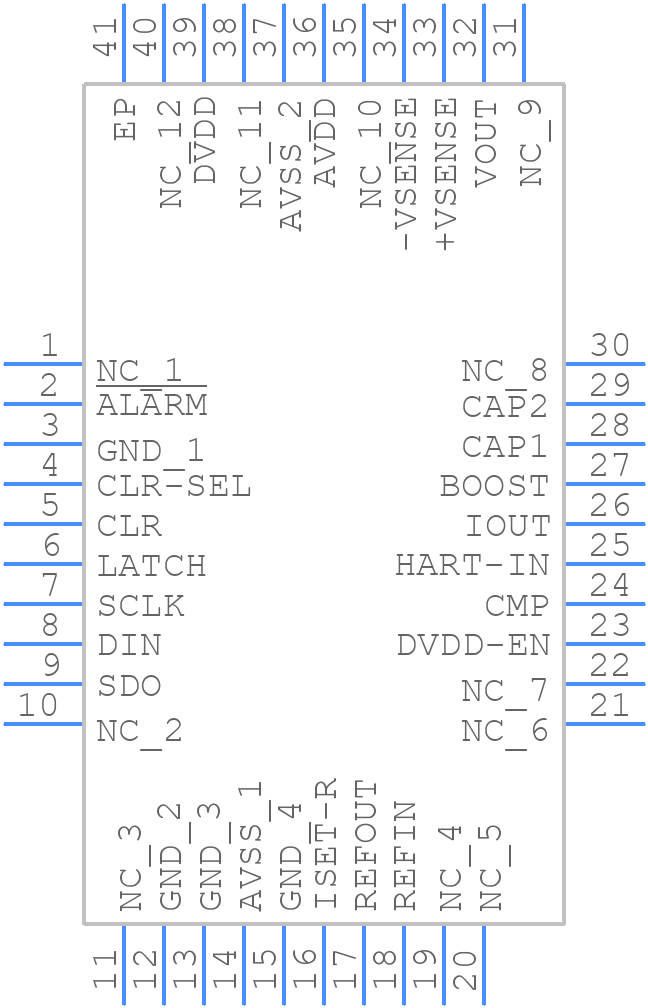

DAC7760IRHAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7760IRHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA(S-PVQFN-N40)_
click to zoom
3D Models
DAC7760IRHAR - Texas Instruments - 3D model - Quad Flat No-Lead - RHA(S-PVQFN-N40)_
click to zoom

DAC7760IRHAR Details

  • Manufacturer Part Number:

    DAC7760IRHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    11 V

  • Analog Output Voltage-Min:

    -11 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.08%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -11.5 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.04 MHz

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    4.6 mA

  • Supply Voltage-Nom:

    10.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DAC7760IRHAR Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Use short, direct traces for the analog output, and avoid crossing digital signals over the analog output traces.
  • To configure the DAC7760IRHAR for bipolar output voltage operation, connect the VREF pin to a voltage reference, and set the BIPOLAR bit in the control register to '1'. Ensure the output voltage range is within the specified limits.
  • Power up the DAC7760IRHAR in the following sequence: VCC, AVCC, DVCC, and then the digital inputs. Ensure all power supplies are stable before applying digital inputs.
  • The internal voltage reference can be used, but it may not provide the best accuracy. Using an external voltage reference can improve accuracy, but ensure it is stable and has a low noise output. Consult the datasheet for specific requirements.
  • The DAC7760IRHAR has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Consult the thermal design guidelines in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC7760IRHAR Overview

Use the download button to access the DAC7760IRHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC77, or try a keyword search, such as Digital to Analog Converters
