A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the clock signal traces short and away from the analog signals.
The DAC7760IRHAT has a built-in calibration feature. To calibrate the device, apply a full-scale input code and measure the output voltage. Then, adjust the offset and gain registers to achieve the desired output voltage. The recommended calibration procedure is outlined in the datasheet and application notes.
The DAC7760IRHAT has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid overheating the device. Also, follow the recommended operating conditions and derating guidelines outlined in the datasheet.
The DAC7760IRHAT has a SPI-compatible digital interface. To handle the digital interface, use a microcontroller or FPGA to send the desired commands and data to the DAC. Follow the recommended protocol outlined in the datasheet, and ensure proper synchronization and data formatting.
To ensure electromagnetic compatibility, use proper shielding, grounding, and filtering techniques. Keep the DAC7760IRHAT away from high-frequency sources, use a low-pass filter on the output, and follow the recommended PCB layout and routing guidelines outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7760IRHAT Overview

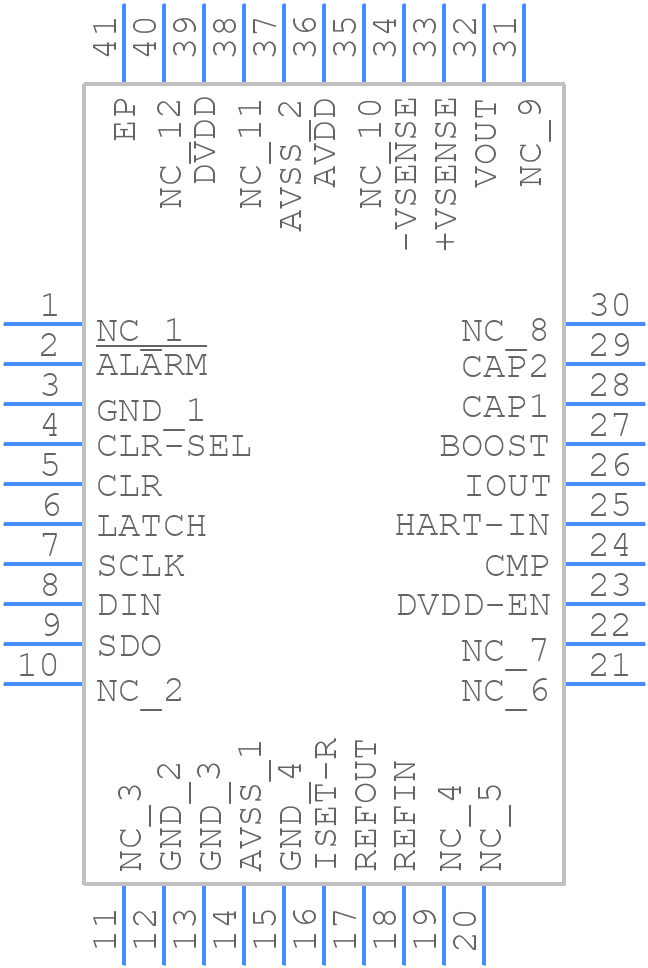

Use the download button to access the DAC7760IRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC77,
or try a keyword search, such as Digital to Analog Converters
