The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
The DAC7801KP has an output voltage range of 0 to VREF. To ensure accurate output voltage, the reference voltage (VREF) should be connected to a stable voltage source, and the output voltage should be buffered with an op-amp if it needs to drive a load.
Clock jitter can affect the DAC7801KP's performance by introducing noise and distortion in the output signal. To minimize the effect of clock jitter, use a high-quality clock source with low jitter, and consider using a clock jitter attenuator or a phase-locked loop (PLL) to clean up the clock signal.
To ensure data integrity when using the DAC7801KP's serial interface, use a reliable communication protocol, such as SPI or I2C, and implement error detection and correction mechanisms, such as checksums or CRCs, to detect and correct data errors.
To minimize noise and interference, keep analog and digital signals separate, use separate power and ground planes for analog and digital circuits, and avoid running digital signals near analog signals. Also, use a star topology for the analog signals and keep the analog signal traces as short as possible.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC7801KP Overview

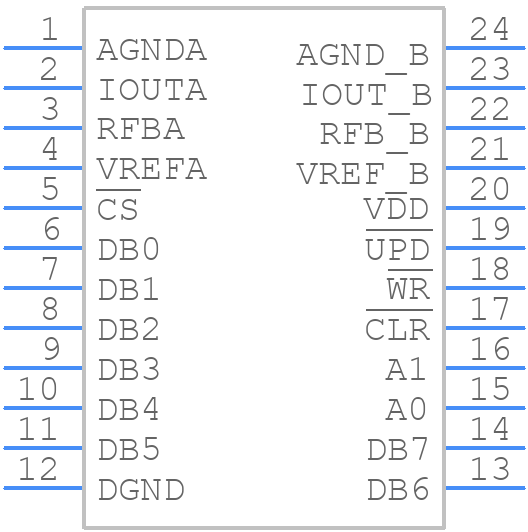

Use the download button to access the DAC7801KP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC78,
or try a keyword search, such as Digital to Analog Converters
