DAC7811IDGSR - Texas Instruments

Description: 12-bit, single-channel, serial input multiplying DAC with 0.2us settling time

Download DAC7811IDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

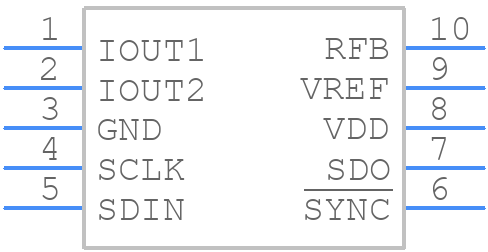

DAC7811IDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC7811IDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC7811IDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC7811IDGSR Details

  • Manufacturer Part Number:

    DAC7811IDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    5 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.2 µs

  • Settling Time-Nom (tstl):

    0.2 µs

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC7811IDGSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by the digital supply (VDD), and then the analog supply (VREF). This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage output, it's essential to use a stable and low-noise reference voltage (VREF) and to decouple the analog supply (VREF) and digital supply (VDD) with suitable capacitors. Additionally, ensure that the output voltage is within the specified range (0 to VREF) and that the output current is within the specified limit (5 mA).
  • The maximum clock frequency for the DAC7811 is 40 MHz. However, it's recommended to operate the device at a clock frequency of 20 MHz or less to ensure reliable operation and to minimize power consumption.
  • To enter power-down mode, assert the PD pin low. In power-down mode, the device consumes minimal power, and the output voltage is disconnected from the output pin. When exiting power-down mode, ensure that the PD pin is de-asserted (set high) before applying a new input code to the device.
  • The CLR (Clear) pin is used to asynchronously clear the input register and the DAC register. When the CLR pin is asserted low, the input register and the DAC register are cleared, and the output voltage is set to 0 V. This pin can be used to reset the device or to implement a power-on reset function.
