DAC80501MDQFT - Texas Instruments

Description: True 16-bit, 1-ch, SPI/I2C, voltage-output DAC in WSON package with precision internal reference

Download DAC80501MDQFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

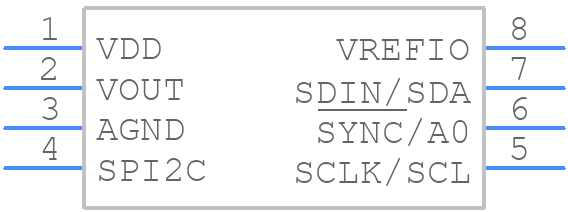

DAC80501MDQFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC80501MDQFT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON (8)
click to zoom
3D Models
DAC80501MDQFT - Texas Instruments - 3D model - Small Outline No-lead - WSON (8)
click to zoom

DAC80501MDQFT Details

  • Manufacturer Part Number:

    DAC80501MDQFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2019-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Max:

    5 µs

  • Settling Time-Nom (tstl):

    5 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DAC80501MDQFT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • To ensure accurate voltage output, it's essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor. Additionally, ensure that the output load is within the specified range, and the output voltage is not loaded with a capacitive load.
  • The maximum output current of the DAC80501 is 5 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • During power-up and power-down, it's recommended to keep the digital inputs (SCL, SDA, and SYNC) in a high-impedance state or tied to a fixed logic level to prevent unwanted device operation or latch-up conditions.
  • The SYNC pin is used to synchronize the DAC's output with an external clock signal. This pin can be used to ensure that the DAC's output is updated synchronously with other devices in the system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC80501MDQFT Overview

Use the download button to access the DAC80501MDQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC80, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
