Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, keeping the thermal pad connected to the ground plane and using thermal vias can help reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 1.8V to 5V.
The PDAC80501MDQFT is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if you must use it in such an environment, ensure proper conformal coating and follow the recommended storage and handling procedures to minimize the risk of moisture-related issues.
To troubleshoot issues with the output voltage, check the input voltage, output load, and PCB layout for any potential issues. Verify that the device is properly powered, and the output is not overloaded. Also, check for any signs of overheating or thermal shutdown.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDAC80501MDQFT Overview

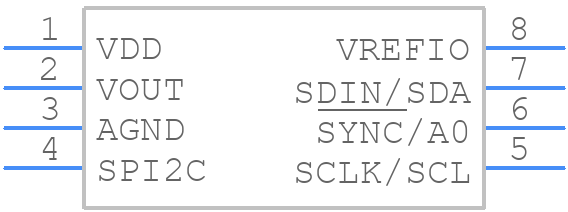

Use the download button to access the PDAC80501MDQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDAC8,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
