The recommended power-up sequence is to power up the analog supply (VCCA) first, followed by the digital supply (VCCD), and then the reference voltage (VREF). This ensures proper device operation and prevents potential latch-up conditions.
To ensure accurate voltage output, it is essential to use a high-precision reference voltage source, maintain a stable power supply, and minimize noise on the digital inputs. Additionally, calibrate the DAC using the internal calibration feature or an external calibration method to compensate for any internal errors.
The maximum output current capability of the DAC8168IAPWR is 10 mA per channel. Exceeding this limit may cause damage to the device or affect its accuracy. Ensure that the output current is within the specified limit to maintain device reliability.
To handle the digital interface in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the digital signals. Additionally, consider using a digital isolator or a buffer to isolate the digital signals from the noisy environment.
The recommended operating temperature range for the DAC8168IAPWR is -40°C to 125°C. Operating the device outside this range may affect its performance, accuracy, or reliability. Ensure that the device is operated within the specified temperature range to maintain its specifications.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DAC8168IAPWR Overview

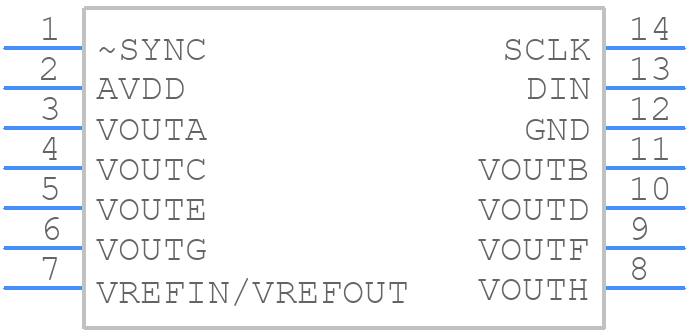

Use the download button to access the DAC8168IAPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC81,
or try a keyword search, such as Digital to Analog Converters
