DAC82002DRXR - Texas Instruments

Description: Digital to Analog Converters - DAC Dual-channel, 16-bit, low-glitch-noise, unbuffered-voltage-output digital-to-analog converter (DAC)

Download DAC82002DRXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

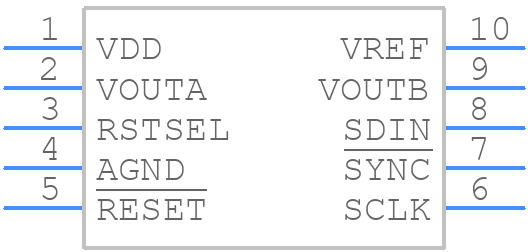

DAC82002DRXR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC82002DRXR - Texas Instruments PCB footprint - Other - Other - DRX0010A
click to zoom
3D Models
DAC82002DRXR - Texas Instruments - 3D model - Other - DRX0010A
click to zoom

DAC82002DRXR Details

  • Manufacturer Part Number:

    DAC82002DRXR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    DAC 16BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Linearity Error-Max (EL):

    0.00305175%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

DAC82002DRXR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital supply (VCC). This ensures proper device operation and prevents potential latch-up conditions.
  • The output voltage range of the DAC82002DRXR is dependent on the reference voltage (VREF) and the gain setting. Ensure that the output voltage range is within the specified limits to avoid saturation or clipping. Additionally, consider using an output buffer or amplifier if the output current or voltage requirements exceed the DAC's capabilities.
  • Temperature affects the DAC82002DRXR's performance, particularly its gain error, offset error, and linearity. Ensure that the device operates within the specified temperature range (-40°C to 125°C) and consider using temperature compensation or calibration techniques to minimize temperature-related errors.
  • To implement a bipolar output configuration, connect the output of the DAC to a resistive divider network or an op-amp circuit that provides a virtual ground reference. This allows the DAC to output both positive and negative voltages. Consult the datasheet and application notes for specific implementation details.
  • To minimize noise and ensure proper operation, separate the digital and analog signal paths, and use a ground plane to shield the analog signals. Keep the analog signal traces short and away from digital signal traces. Consult the datasheet and application notes for specific layout and routing guidelines.
