Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for the analog output, and avoid routing digital signals near the analog output. Additionally, use a low-ESR capacitor for the VREF pin.
The DAC8234SRHAT has an internal calibration circuit that is performed during power-up. No external calibration is required. However, if the device is used in a system that requires high accuracy, an external calibration procedure can be implemented using the DAC's internal calibration registers.
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital supply (VDD). This ensures that the internal voltage regulators are powered up correctly and prevents damage to the device.
The DAC8234SRHAT uses a SPI-compatible digital interface. The SCLK frequency should be between 10 kHz and 50 MHz, and the SDIN pin should be driven with a valid data signal during the SCLK high phase. The SYNC pin should be driven low to initiate a data transfer.
The DAC8234SRHAT is rated for operation from -40°C to 125°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, and avoid thermal gradients. Use a thermal pad or heat sink if necessary, and follow the recommended PCB layout guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DAC8234SRHAT Overview

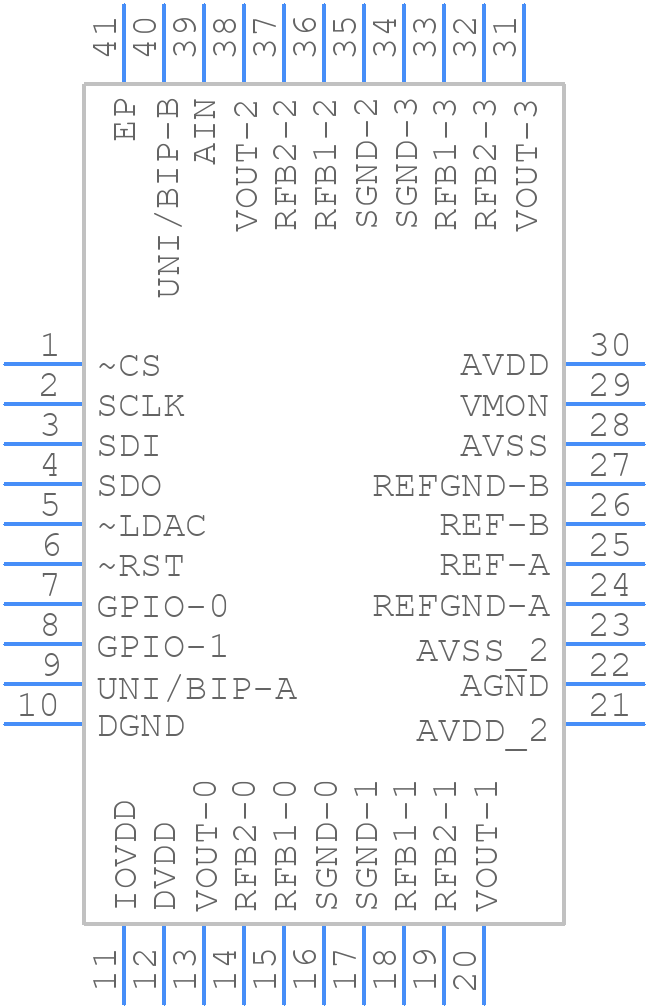

Use the download button to access the DAC8234SRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC82,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
