Texas Instruments provides a layout and routing guide in the DAC8554 datasheet, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance. Additionally, the TI website has a wealth of resources, including application notes and design guides, that provide more detailed information on layout and routing best practices.
The DAC8554IPWRG4 has a built-in calibration feature that allows for gain and offset calibration. The calibration process involves writing specific values to the device's registers to adjust the output voltage. The datasheet provides a detailed calibration procedure, and TI also offers software tools, such as the DAC8554 Evaluation Module, to simplify the calibration process.
The maximum output current of the DAC8554IPWRG4 is 5mA. Exceeding this current limit can affect the output voltage accuracy and may cause the output voltage to droop. To ensure accurate output voltages, it's essential to keep the output current within the specified limit. If higher output currents are required, an external buffer amplifier can be used to boost the output current while maintaining the accuracy of the output voltage.
The DAC8554IPWRG4 has a built-in power-on reset (POR) circuit that ensures the device is in a known state after power-up. The POR circuit also includes a brownout detection feature that resets the device if the supply voltage falls below a certain threshold. System designers should ensure that the power supply is stable and within the specified voltage range to prevent unwanted resets and ensure reliable operation.
The DAC8554IPWRG4 has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, system designers should consider thermal management techniques, such as heat sinking, thermal interface materials, and airflow management. Additionally, the device's thermal characteristics, such as thermal resistance and power dissipation, should be taken into account during system design to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8554IPWRG4 Overview

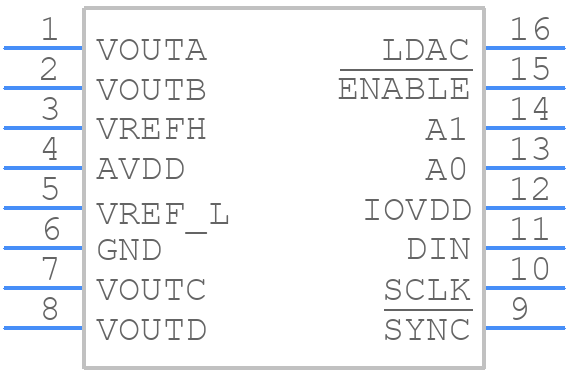

Use the download button to access the DAC8554IPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85,
or try a keyword search, such as Digital to Analog Converters
