DAC8562TDGST - Texas Instruments

Description: DAC8562T Dual,16-Bit,Low Power,Voltage-Output DACs with 2.5-V,4ppm/C, Internal Ref, and 5V TTL I/O

Download DAC8562TDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

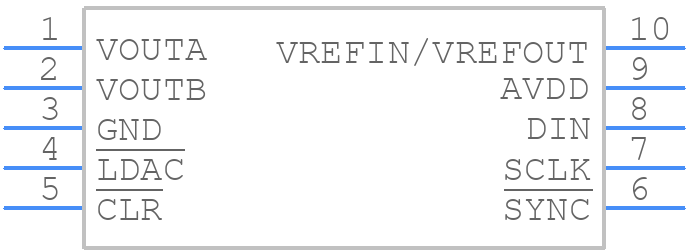

DAC8562TDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8562TDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
DAC8562TDGST - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

DAC8562TDGST Details

  • Manufacturer Part Number:

    DAC8562TDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8562TDGST Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to use a high-precision voltage reference, such as the Texas Instruments REF5025. Additionally, the output voltage should be filtered using a low-pass filter to reduce noise and ripple.
  • The maximum output current of the DAC8562 is 10 mA. Exceeding this current limit may cause damage to the device or affect its accuracy.
  • The DAC8562 can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The specific interface protocol depends on the microcontroller and the application requirements.
  • The settling time of the DAC8562 is typically around 10 μs, but this can vary depending on the output voltage, load capacitance, and other factors. It is essential to ensure that the output has settled before taking a measurement or using the output voltage.
