DAC8563TDGSR - Texas Instruments

Description: DAC8563T Dual,16-Bit,Low Power with 2.5-V,4ppm/C Internal Ref,Reset to Mid-scale and 5V TTL I/O

Download DAC8563TDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

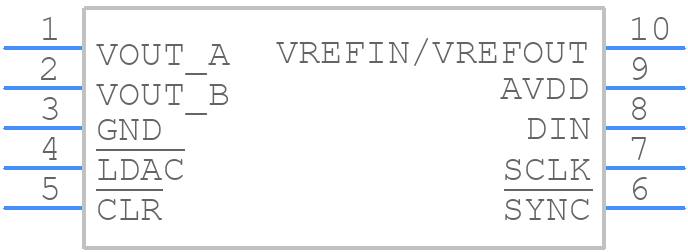

Symbol
DAC8563TDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8563TDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP
click to zoom
3D Models
DAC8563TDGSR - Texas Instruments - 3D model - Small Outline Packages - VSSOP
click to zoom

DAC8563TDGSR Details

  • Manufacturer Part Number:

    DAC8563TDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.1 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    7 µs

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8563TDGSR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To ensure accurate voltage output, it is essential to use a stable reference voltage, minimize noise on the analog input pins, and use a low-noise power supply. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
  • The maximum output current of the DAC8563 is 5mA. Exceeding this current limit can cause damage to the device or affect its accuracy.
  • The DAC8563's digital interface is a 3-wire serial interface. The SCLK pin is the clock input, the SDIN pin is the data input, and the SYNC pin is the chip select. The interface operates in SPI mode, and the clock frequency should not exceed 50 MHz.
  • The CLR pin is an active-low clear input that resets the DAC8563's internal registers and output voltage to zero. It can be used to initialize the device or to reset the output voltage to a known state.
