DAC8564IBPW - Texas Instruments

Description: 16-Bit, Quad Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference

Download DAC8564IBPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

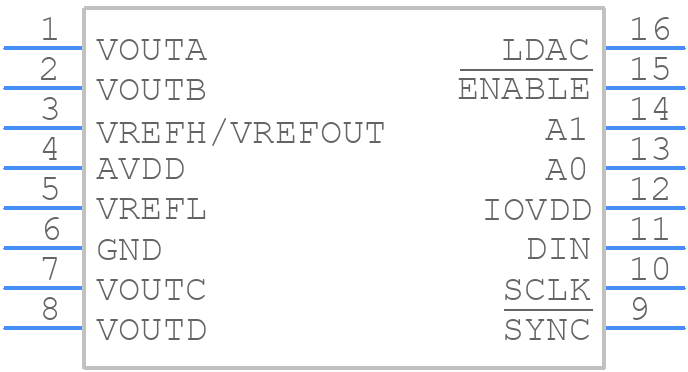

Symbol
DAC8564IBPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8564IBPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
DAC8564IBPW - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

DAC8564IBPW Details

  • Manufacturer Part Number:

    DAC8564IBPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.5005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC8564IBPW Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • When using an external reference voltage, ensure it is within the specified range (1.2V to 2.5V) and that the output voltage range is adjusted accordingly using the gain and offset registers. Failure to do so may result in incorrect output voltages or device malfunction.
  • The maximum clock frequency for the DAC8564's serial interface is 50 MHz. Exceeding this frequency may result in data corruption or device malfunction.
  • The DAC8564 has a power-down mode that can be enabled by setting the PDWN pin low. This reduces the device's power consumption to near zero. However, ensure that the device is properly powered down and powered up to prevent potential latch-up conditions.
  • To minimize noise and ensure proper device operation, it is recommended to separate analog and digital signal traces, use a solid ground plane, and keep sensitive analog signals away from digital signals. Additionally, use a low-impedance path for the output voltage and ensure proper decoupling of the power supplies.
