Texas Instruments provides a recommended layout and routing guide in the DAC8802IPWR datasheet, which includes guidelines for placing components, routing traces, and minimizing noise. Additionally, the TI website has a PCB layout guide that provides more detailed information on layout and routing best practices.
The DAC8802IPWR has a built-in calibration feature that can be used to improve accuracy and linearity. The calibration process involves writing specific values to the device's registers to adjust the gain and offset of the DAC. Texas Instruments provides a calibration guide in the datasheet, as well as a software development kit (SDK) that includes calibration routines.
The maximum output current of the DAC8802IPWR is 25 mA per channel. To ensure that this limit is not exceeded, the output current should be monitored and limited using external circuitry, such as a current-limiting resistor or a current-sensing amplifier. Additionally, the device's output stage can be configured to limit the output current to a specific value using the device's registers.
The DAC8802IPWR has a synchronization feature that allows multiple devices to be synchronized using an external clock signal. The devices can be connected in a daisy-chain configuration, and the clock signal can be distributed to each device using a clock buffer or a clock distribution network. Texas Instruments provides more information on synchronizing multiple DAC8802IPWR devices in the datasheet and in application notes.
The recommended power-up sequence for the DAC8802IPWR is to apply the analog power supply (AVCC) before the digital power supply (DVCC). The power-down sequence should be reversed, with DVCC being removed before AVCC. Additionally, the device's reset pin should be asserted during power-up and power-down to ensure that the device is properly initialized and reset.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8802IPWR Overview

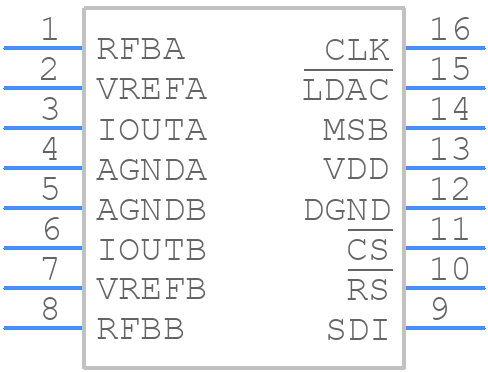

Use the download button to access the DAC8802IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
