Texas Instruments provides a layout guide in the application note SLAA523, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
To achieve a bipolar output, you can use an external op-amp to level-shift and amplify the output of the DAC8811. Texas Instruments provides an example circuit in the datasheet, Figure 34, which shows how to configure an op-amp to achieve a bipolar output range.
The maximum update rate of the DAC8811 is 1 MSPS. To achieve this rate, you need to use the SPI interface and ensure that the clock frequency is at least 20 MHz. Additionally, you should minimize the time between consecutive writes to the DAC register, and use the double-buffered architecture to reduce the settling time.
Texas Instruments recommends using a low-noise, low-dropout regulator (LDO) to power the DAC8811, and decoupling the power supply lines with 10uF and 100nF capacitors. Additionally, you should use a separate analog and digital power supply, and ensure that the power supply lines are routed away from the analog output lines.
The DAC8811's performance is affected by temperature, with a typical temperature coefficient of ±1 ppm/°C. To compensate for temperature effects, you can use an external temperature sensor and adjust the DAC output accordingly. Texas Instruments provides an example of temperature compensation in the application note SLAA524.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8811IBDGKTG4 Overview

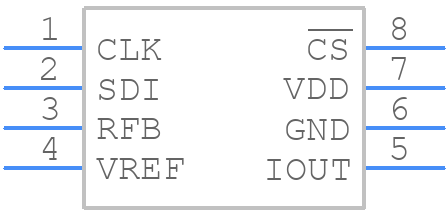

Use the download button to access the DAC8811IBDGKTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88,
or try a keyword search, such as Digital to Analog Converters
