Texas Instruments provides a recommended layout and routing guide in the DAC8871SPWR evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise and ensure optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device.
To configure the DAC8871SPWR for bipolar output operation, you need to connect the VREF pin to a negative voltage source (e.g., -5V) and set the UNIPOLAR/BIPOLAR pin (Pin 14) to a logic low. Additionally, you'll need to adjust the output voltage range by setting the VOUT_RANGE pin (Pin 15) accordingly. Refer to the datasheet for specific configuration details.
The maximum output current of the DAC8871SPWR is 25mA. The output current limit affects the output voltage range, as the device can only maintain its specified output voltage range up to the maximum output current. Exceeding the maximum output current can result in reduced output voltage range or even damage to the device.
To synchronize multiple DAC8871SPWR devices, you can use the SYNC pin (Pin 16) to synchronize the devices' internal clocks. Connect the SYNC pins of all devices together and drive them with a common clock signal. This ensures that all devices update their outputs simultaneously.
Temperature affects the DAC8871SPWR's performance, particularly its gain error and offset voltage. To compensate for temperature effects, you can use external temperature sensors and adjust the output voltage accordingly. Additionally, you can use the device's internal temperature sensor (available on some packages) to monitor temperature and adjust the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8871SPWR Overview

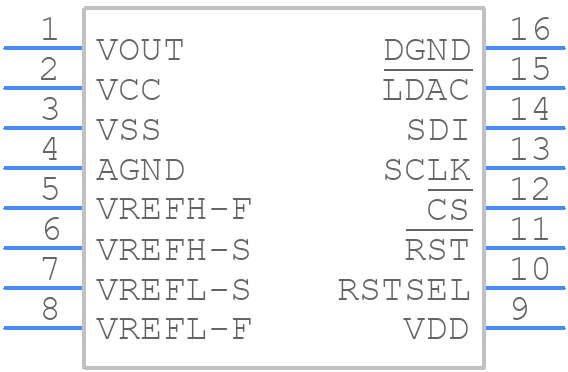

Use the download button to access the DAC8871SPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
