DAMG15PJK87 - ITT CANNON

Description: Circular MIL Spec Connector DSUB 15M PCB RA G GF TIN

Download DAMG15PJK87 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DAMG15PJK87 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

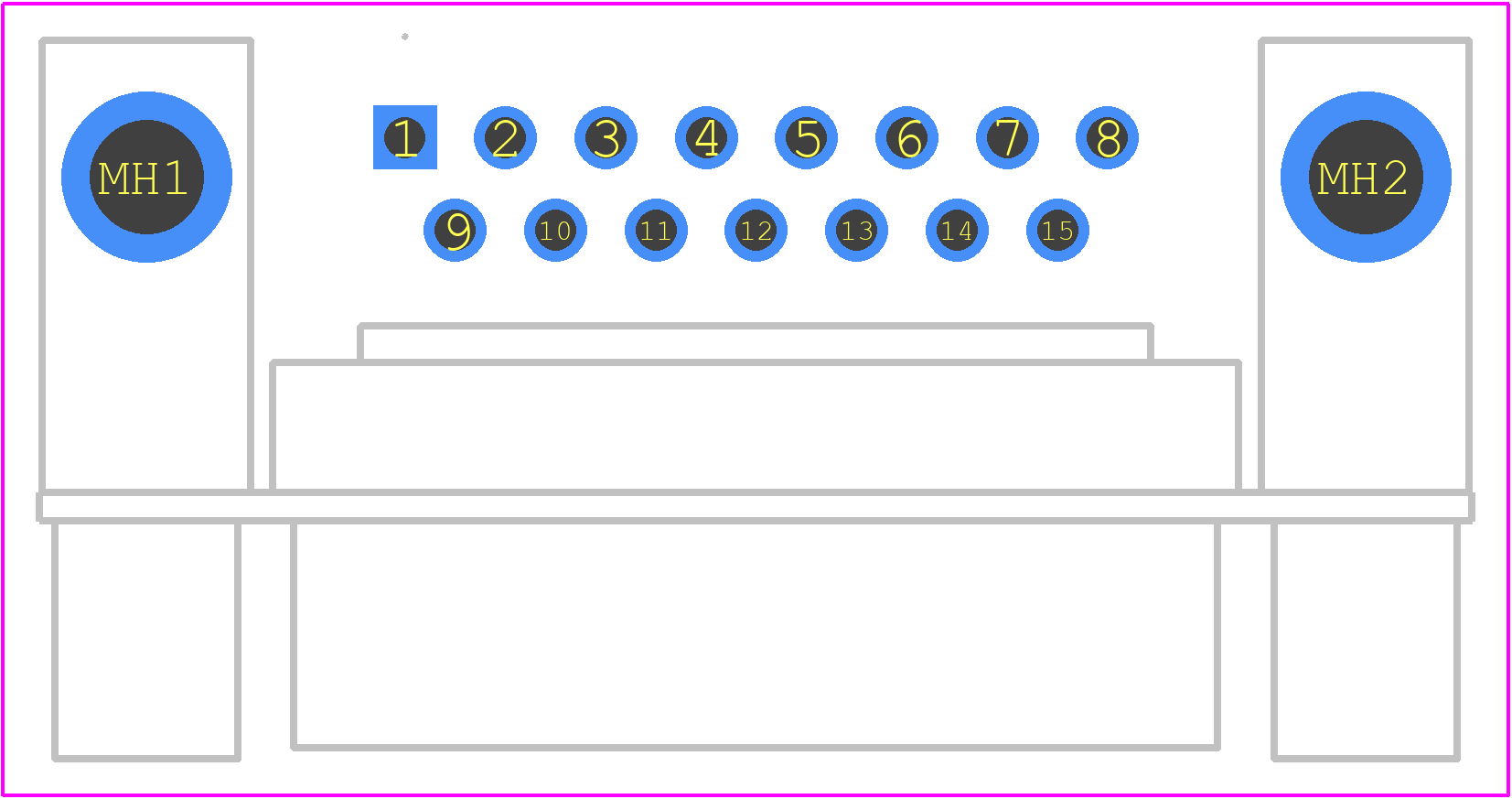

DAMG15PJK87 - ITT CANNON PCB footprint - Other - Other - DAMG15PJK87-1
click to zoom

DAMG15PJK87 Details

  • Manufacturer Part Number:

    DAMG15PJK87

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.18

  • Additional Feature:

    PANEL MOUNT

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (30)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

DAMG15PJK87 Frequently Asked Questions (FAQs)

  • The operating temperature range of the DAMG-15P-J-K87 connector is -55°C to 125°C.
  • Yes, the DAMG-15P-J-K87 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • The DAMG-15P-J-K87 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the DAMG-15P-J-K87 connector is designed to operate in harsh environments, including high humidity and salt spray, making it suitable for applications in marine, industrial, or outdoor environments.
  • The typical lead time for delivery of the DAMG-15P-J-K87 connector varies depending on the supplier and the quantity ordered, but it is usually around 6-12 weeks.
