COMPATIBLE CONTACT: DM53744-98, EMI/RFI SHIELDED, PANEL MOUNT
Body Breadth:
0.187 inch
Body Depth:
0.494 inch
Body Length:
1.541 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Arrangement:
S5C2
Contact Finish Mating:
GOLD FLASH
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Resistance:
7.5 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1000VAC V
Durability:
500 Cycles
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Material:
POLYESTER
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Option 1:
#4-40
Mounting Option 2:
CLINCH NUT
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
5 A
Reference Standard:
UL
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
2/A
Termination Type:
SOLDER
Total Number of Contacts:
7
UL Flammability Code:
94V-0
DAMZ7H2SNA197 Frequently Asked Questions (FAQs)
The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the DAMZ-7H2S-N-A197 connector, but it's always best to consult the specific application requirements and the manufacturer's recommendations.
Yes, the DAMZ-7H2S-N-A197 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
Yes, the DAMZ-7H2S-N-A197 connector is designed to operate in harsh environments, including high temperatures (up to 200°C) and high humidity. However, it's essential to consult the datasheet and manufacturer's recommendations for specific environmental requirements.
The DAMZ-7H2S-N-A197 connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the DAMZ-7H2S-N-A197 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAMZ7H2SNA197 Overview

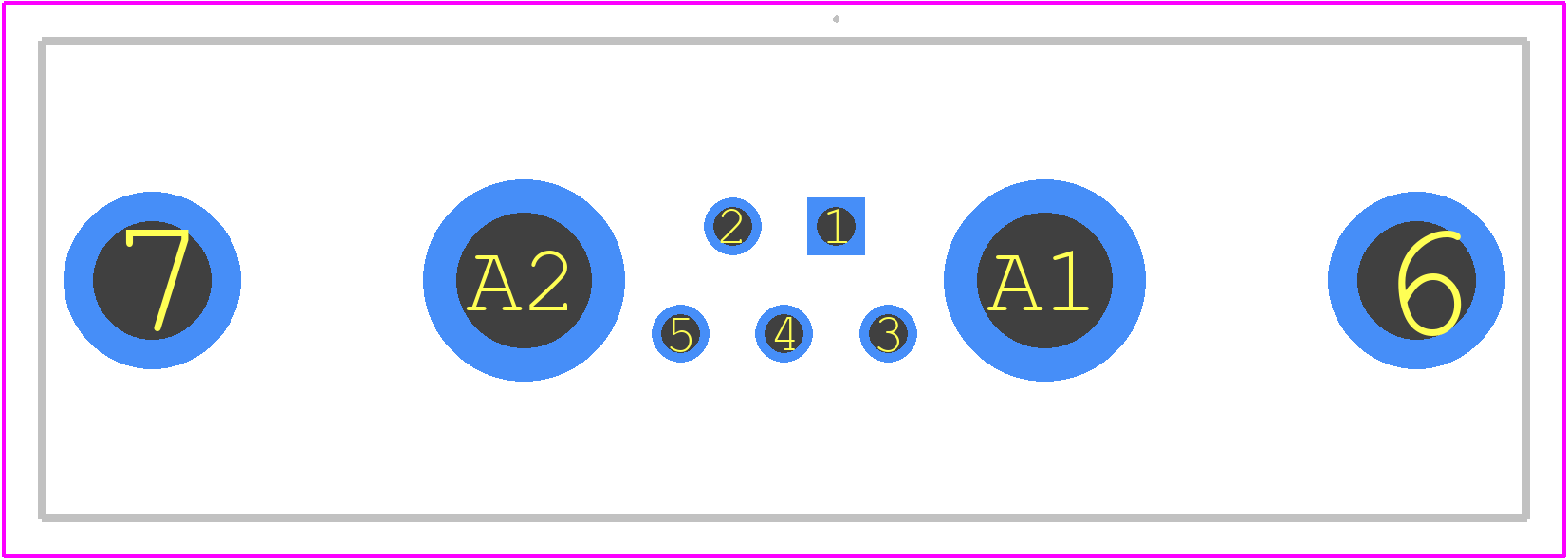

Use the download button to access the DAMZ7H2SNA197 schematic symbol, PCB footprint, and 3D model.
