DC-10CGKWA - Kingbright

Description: LED Bar Graph 10seg 25.4mm Green 28mcd

Download DC-10CGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DC-10CGKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

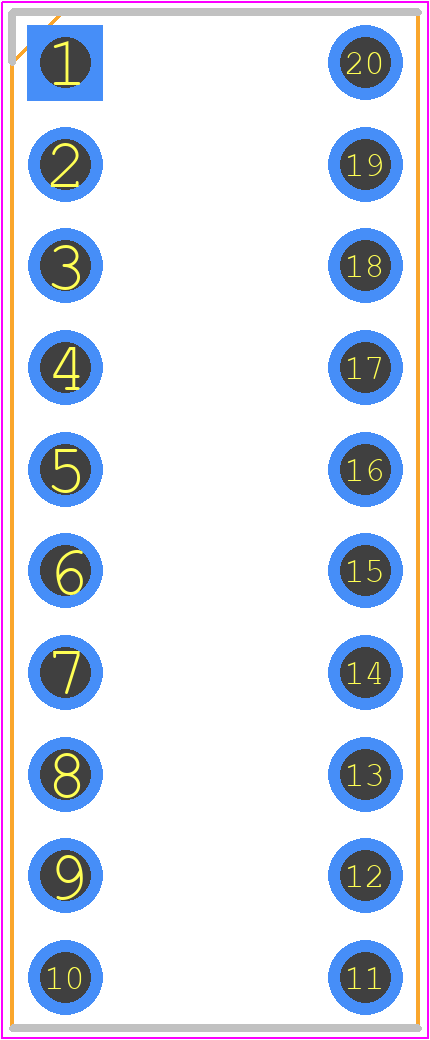

DC-10CGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DC-10CGKWA
click to zoom

DC-10CGKWA Details

  • Manufacturer Part Number:

    DC-10CGKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.45 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Min:

    0.014 cd

  • Luminous Intensity-Nom:

    28.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    10

  • Number of LEDs in Array:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    TUBE

  • Peak Wavelength:

    574 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

DC-10CGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DC10CGKWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, the DC10CGKWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect it from moisture and UV radiation.
  • The maximum forward current that can be applied to the DC10CGKWA is 30mA, exceeding this may reduce the LED's lifespan or cause damage.
  • Yes, the DC10CGKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle of the DC10CGKWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC-10CGKWA Overview

Use the download button to access the DC-10CGKWA schematic symbol and PCB footprint.
