DC-10SURKWA - Kingbright

Description: LED Bar Graph 10seg 25.4mm Red 55mcd Kingbright DC-10SURKWA Light Bar Array LED Display, Red 100000 mcd

Download DC-10SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

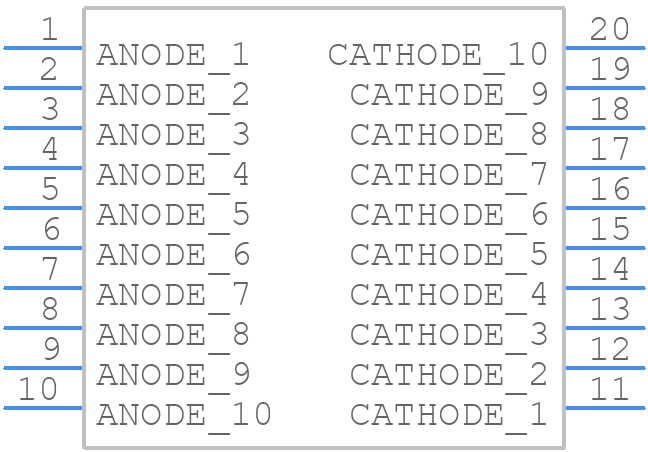

DC-10SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

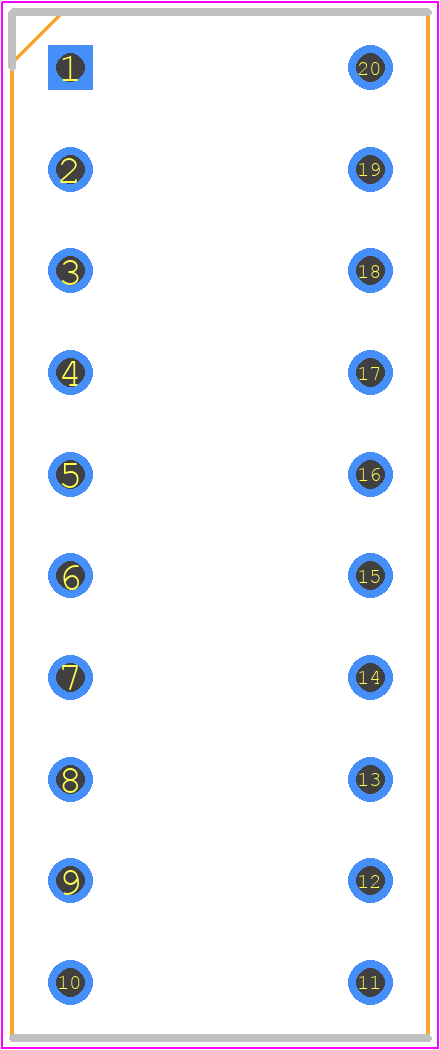

DC-10SURKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DC-10SURKWA
click to zoom
3D Models
DC-10SURKWA - Kingbright - 3D model - Dual-In-Line Sockets - DC-10SURKWA
click to zoom

DC-10SURKWA Details

  • Manufacturer Part Number:

    DC-10SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    BOX

  • Peak Wavelength:

    650 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.5 mm

DC-10SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the DC10SURKWA is -30°C to 60°C.
  • Yes, the DC10SURKWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV degradation.
  • The maximum forward current rating for the DC10SURKWA is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
  • Yes, the DC10SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical luminous intensity of the DC10SURKWA is 10,000 mcd (millicandelas) at a viewing angle of 30°.
