DC-20/20CGKWA - Kingbright

Description: BARGRAPH ARRAY, 20-SEGMENT, GREEN

Download DC-20/20CGKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

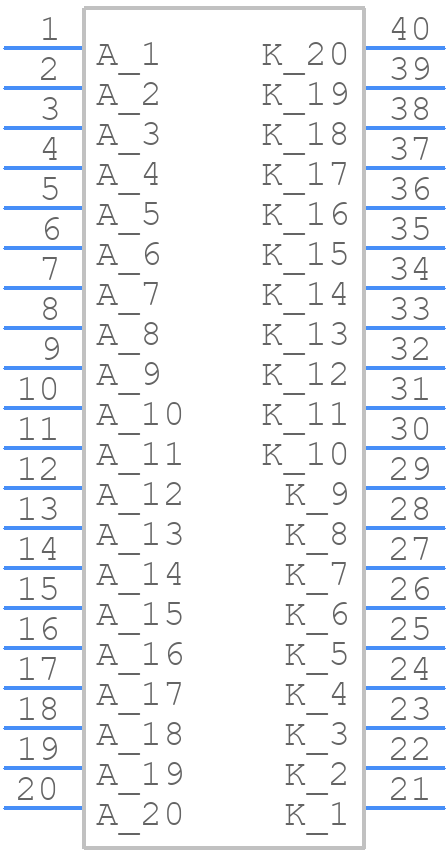

Symbol
DC-20/20CGKWA - Kingbright - PCB symbol
click to zoom

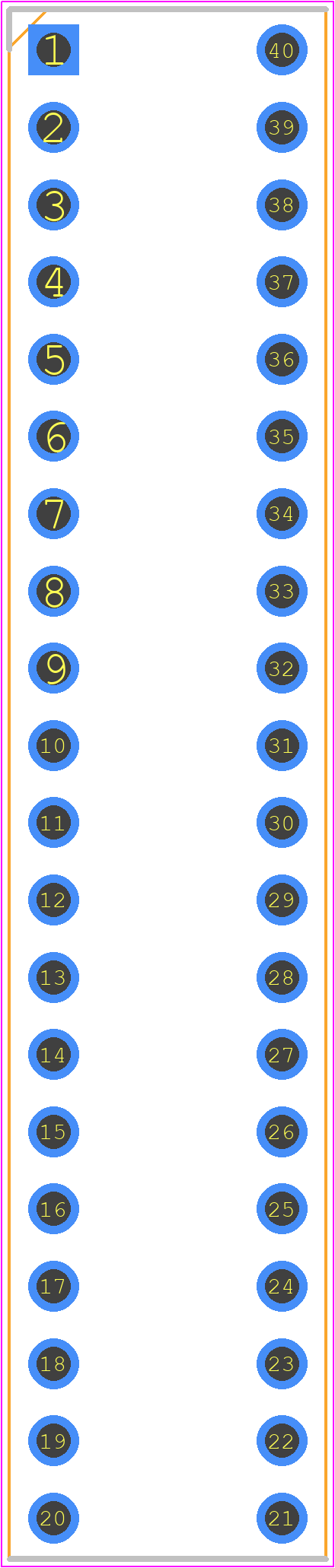

PCB Footprints
DC-20/20CGKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP40
click to zoom
3D Models
DC-20/20CGKWA - Kingbright - 3D model - Dual-In-Line Sockets - DIP40
click to zoom

DC-20/20CGKWA Details

  • Manufacturer Part Number:

    DC-20/20CGKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-40

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Configuration:

    SEPARATE, 20 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    28.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    20

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    TUBE

  • Peak Wavelength:

    574 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.5 mm

DC-20/20CGKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DC-20/20CGKWA is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, the DC-20/20CGKWA can be used in outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
  • The typical junction temperature of the DC-20/20CGKWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, the DC-20/20CGKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The recommended reflow soldering temperature profile for the DC-20/20CGKWA is 260°C peak temperature, with a dwell time of 10-30 seconds above 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC-20/20CGKWA Overview

Use the download button to access the DC-20/20CGKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC-20, or try a keyword search, such as Visible LEDs
