DC03-11EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 20mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 10-DIP (0.400", 10.16mm)

Download DC03-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

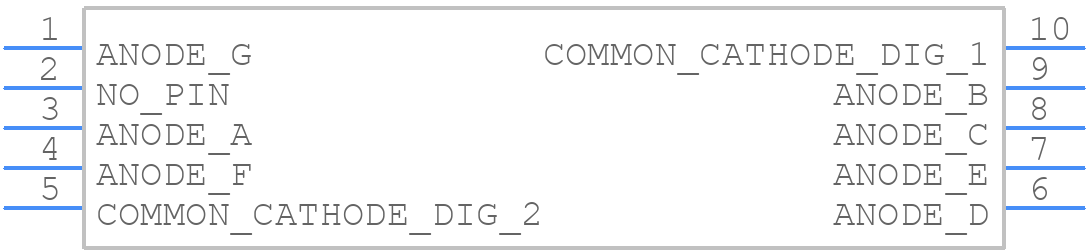

DC03-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

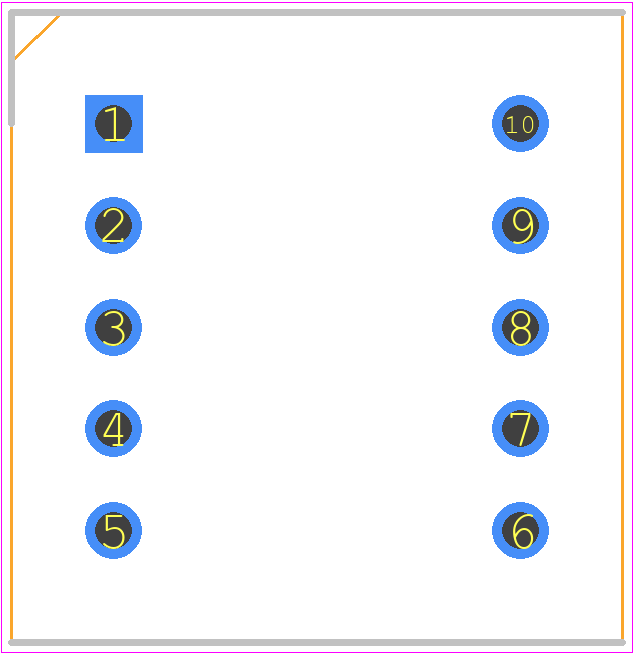

DC03-11EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP_2025
click to zoom
3D Models
DC03-11EWA - Kingbright - 3D model - Dual-In-Line Sockets - 10-DIP_2025
click to zoom

DC03-11EWA Details

  • Manufacturer Part Number:

    DC03-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

DC03-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DC03-11EWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • While DC03-11EWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear epoxy or silicone coating can help protect the LED from environmental stress.
  • The maximum soldering temperature for DC03-11EWA is 260°C for 3 seconds. Exceeding this temperature can cause damage to the LED or its internal components.
  • DC03-11EWA is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to use a more robust LED or take additional measures to secure the LED, such as using a vibration-dampening material or a more robust PCB design.
  • The typical lifespan of DC03-11EWA is around 50,000 hours, depending on operating conditions, such as temperature, current, and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC03-11EWA Overview

Use the download button to access the DC03-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC03-, or try a keyword search, such as LED Displays
