DC04-11GWA - Kingbright

Description: LED Displays & Accessories Dual Green 568nm Common Cathode

Download DC04-11GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

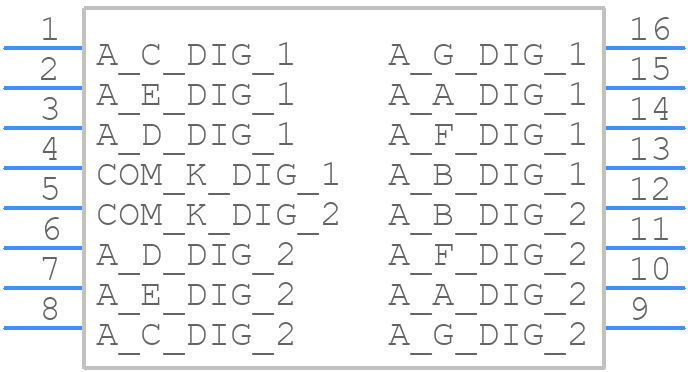

DC04-11GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

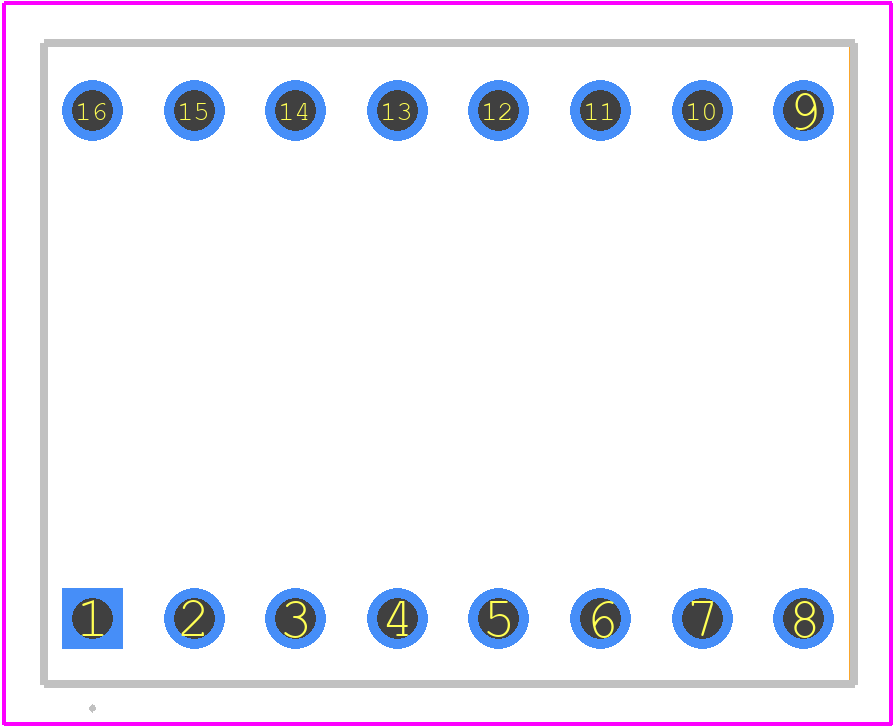

DC04-11GWA - Kingbright PCB footprint - Other - Other - DC04-11GWA-4
click to zoom
3D Models
DC04-11GWA - Kingbright - 3D model - Other - DC04-11GWA-4
click to zoom

DC04-11GWA Details

  • Manufacturer Part Number:

    DC04-11GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

DC04-11GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for DC04-11GWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • While DC04-11GWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and UV radiation. However, it's recommended to use a suitable encapsulant or coating to ensure reliability.
  • The maximum soldering temperature for DC04-11GWA is 260°C for 3 seconds. Exceeding this temperature may damage the LED or affect its performance.
  • Yes, DC04-11GWA is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering to ensure reliable assembly.
  • The typical lifespan of DC04-11GWA is 50,000 hours or more, depending on operating conditions and usage. However, the actual lifespan may vary depending on factors such as temperature, humidity, and drive current.
