DC10EGWA footprint, schematic symbol and 3D model by Kingbright

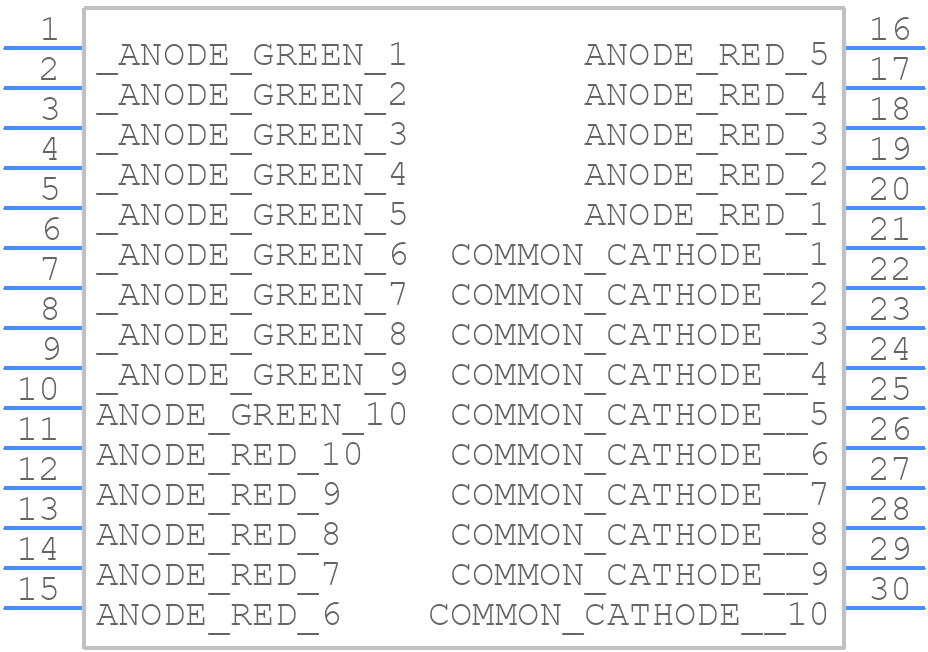

Symbol

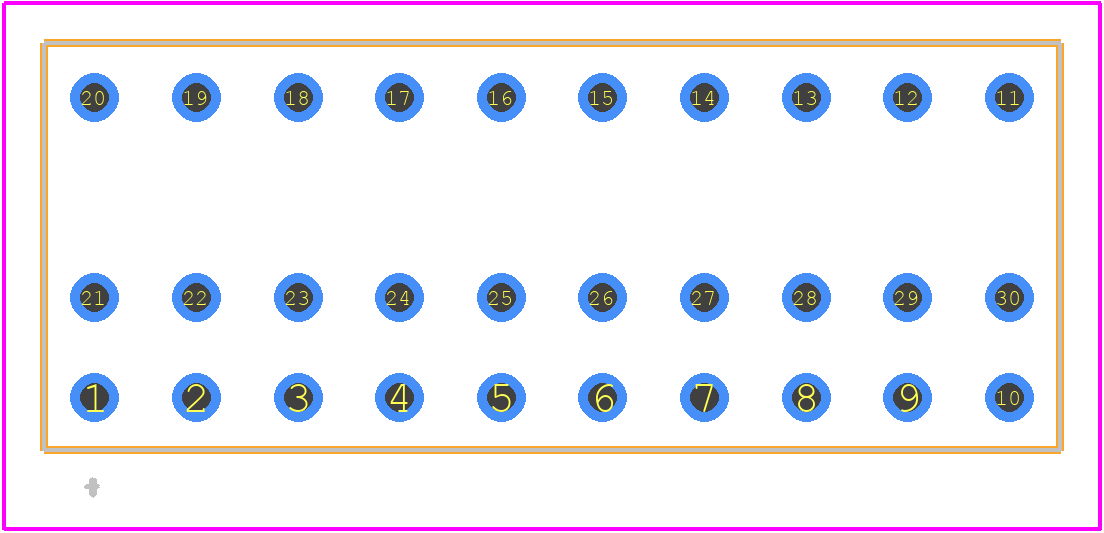

PCB Footprints

3D Models

DC10EGWA Details

The recommended storage temperature for the DC10EGWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
Yes, the DC10EGWA is suitable for outdoor use, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures to maintain its performance and lifespan.
The maximum forward current for the DC10EGWA is 30mA. Exceeding this limit may reduce the LED's lifespan or cause damage.
To prevent ESD damage, handle the DC10EGWA with anti-static wrist straps, mats, or other ESD protection devices. Avoid touching the LED's pins or components with bare hands.
The typical junction temperature for the DC10EGWA is 125°C (257°F). Operating the LED above this temperature may reduce its lifespan or cause damage.

Expert Contribution

System Verified

Community Approved

Use the download button to access the DC10EGWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DC10E, or try a keyword search, such as Visible LEDs
