DC20/20EWA - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 20 Wide, SIP Red Diffused, White 1.9V 10mA Rectangle with Flat Top 5.08mm x 1.78mm Through Hole

Download DC20/20EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

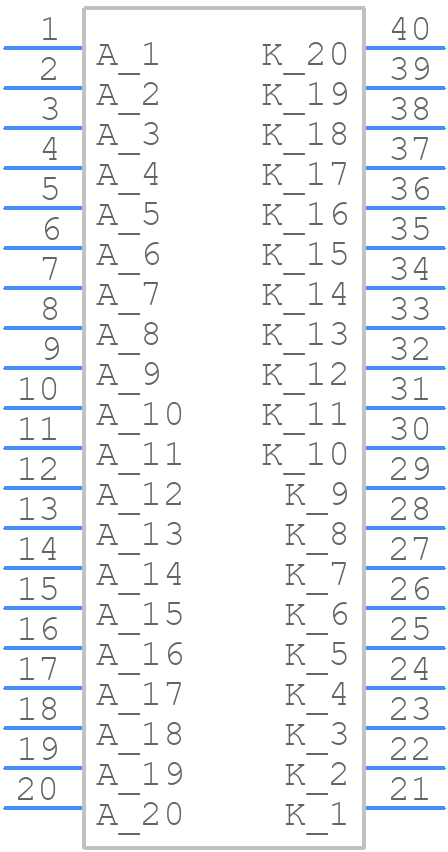

Symbol
DC20/20EWA - Kingbright - PCB symbol
click to zoom

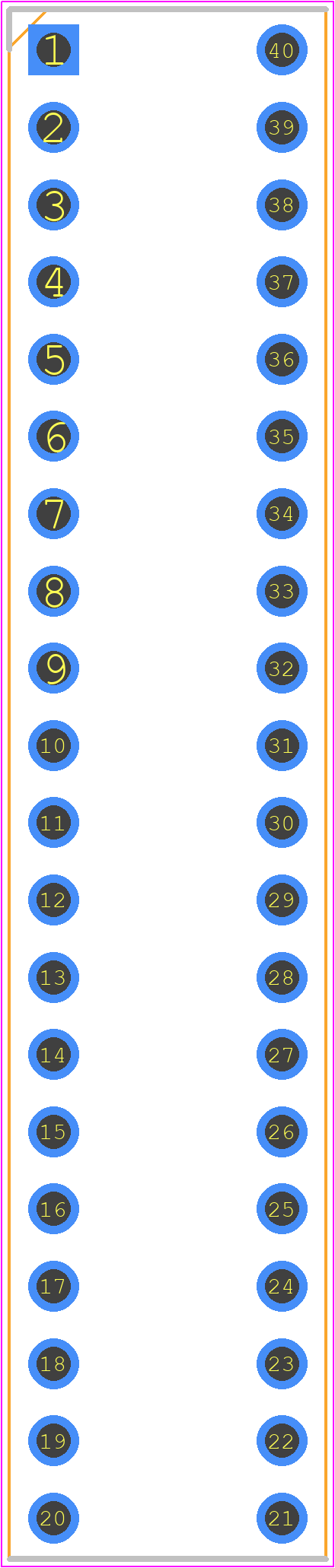

PCB Footprints
DC20/20EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 40-PIN DIP
click to zoom

DC20/20EWA Details

  • Manufacturer Part Number:

    DC20/20EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-40

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • Color:

    HIGH EFFICIENCY RED

  • Configuration:

    SEPARATE, 20 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    9.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    20

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    TUBE

  • Peak Wavelength:

    627 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    7.5 mm

DC20/20EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DC20/20EWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the DC20/20EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from environmental factors such as moisture, dust, and UV radiation.
  • The maximum soldering temperature for the DC20/20EWA is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, the DC20/20EWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
  • The typical lifespan of the DC20/20EWA is 50,000 hours or more, depending on the operating conditions and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC20/20EWA Overview

Use the download button to access the DC20/20EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DC20/, or try a keyword search, such as Visible LEDs
