The recommended storage temperature for the DC20/20GWA is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, the DC20/20GWA is suitable for outdoor use, but it's recommended to use a protective coating or encapsulation to prevent moisture ingress and UV degradation.
The maximum forward current for the DC20/20GWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
Yes, the DC20/20GWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The typical viewing angle for the DC20/20GWA is 120°, but this can vary depending on the specific application and optical design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DC20/20GWA Overview

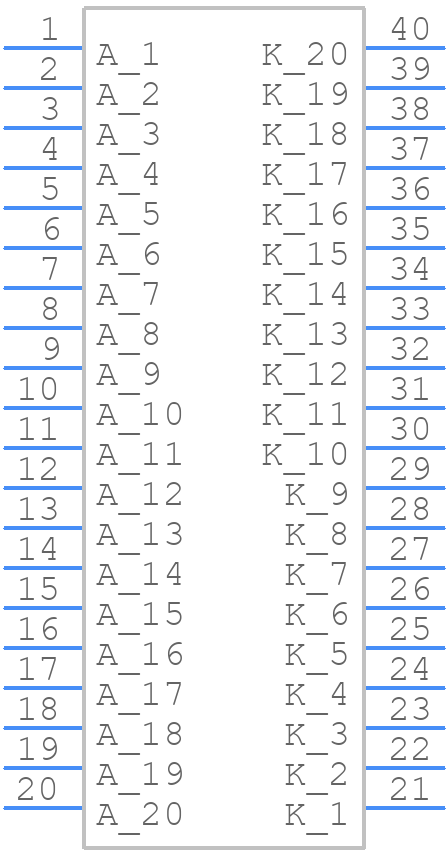

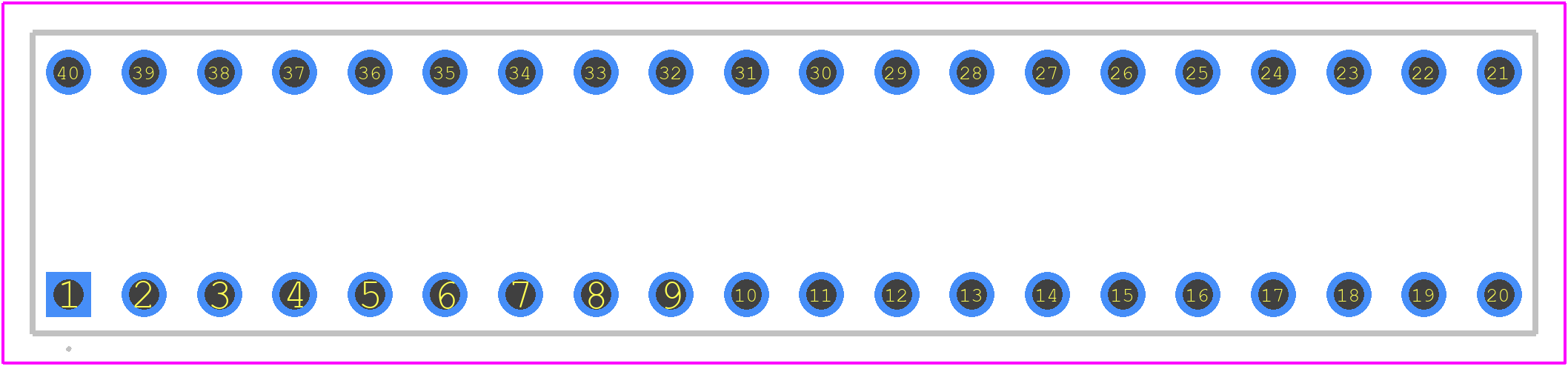

Use the download button to access the DC20/20GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC20/,
or try a keyword search, such as Visible LEDs
