DC20/20YWA - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 20 Wide, SIP Yellow Diffused, White 1.95V 10mA Rectangle with Flat Top Through Hole

Download DC20/20YWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DC20/20YWA model

Email notifications will be applied after download.

Send part feedback

Symbol

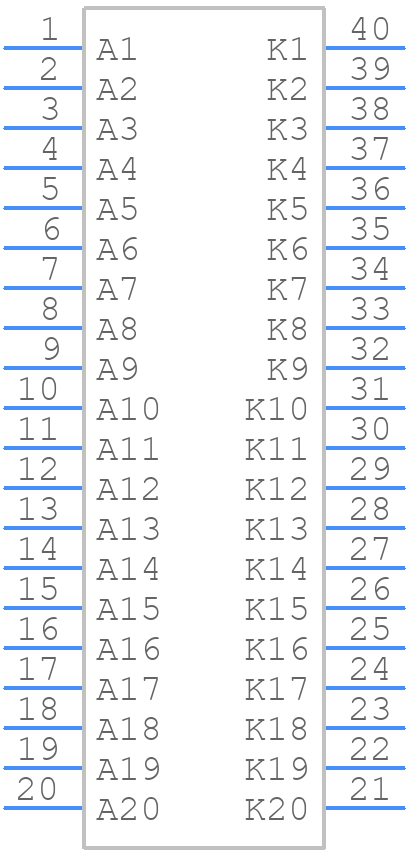

DC20/20YWA - Kingbright - PCB symbol

PCB Footprints

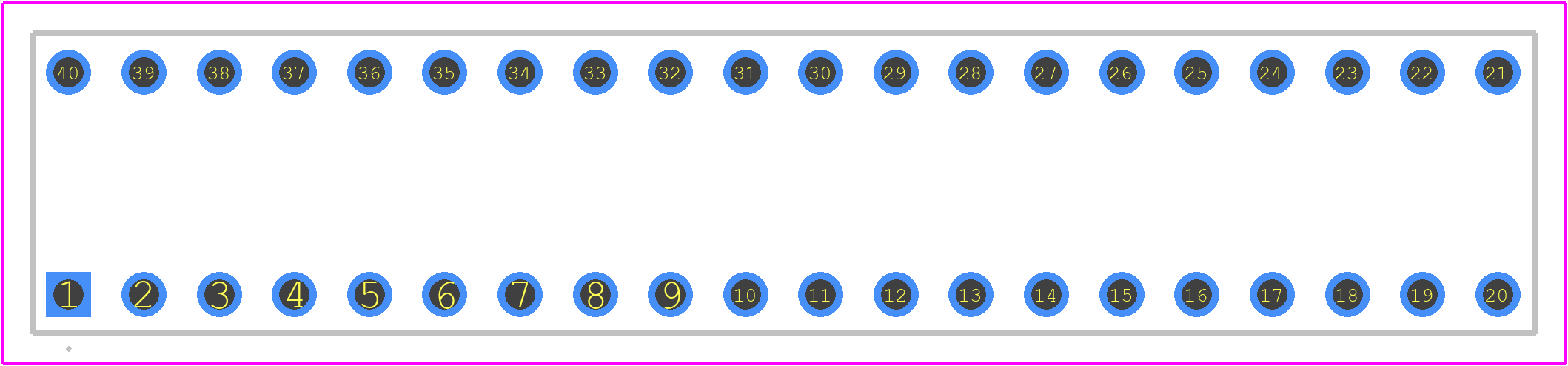

DC20/20YWA - Kingbright PCB footprint - Other - Other - 50.7x10.16x8.00mm

3D Models

DC20/20YWA - Kingbright - 3D model - Other - 50.7x10.16x8.00mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for DC20/20YWA
Part Number DC20/20YWA
Manufacturer Kingbright
Pin Count 40
Part Category Display
Package Category Other
Footprint Name Other - 50.7x10.16x8.00mm
Released Date Jan 3, 2025
Last Modified Date Jan 3, 2025 5:04 AM UTC
Pinout / Pin List Click Here (Member Only)

DC20/20YWA Details

Manufacturer Part Number:
DC20/20YWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-40
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Color:
YELLOW
Configuration:
SEPARATE, 20 ELEMENTS
Forward Current-Max:
0.03 A
Lens Type:
DIFFUSED WHITE
Luminous Intensity-Nom:
9.0 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
20
Number of Terminals:
40
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
8 mm
Packing Method:
BULK
Peak Wavelength:
590 nm
Shape:
RECTANGULAR
Size:
5.08 mm
Surface Mount:
NO
Terminal Pitch:
7.5 mm

DC20/20YWA Frequently Asked Questions (FAQs)

The recommended storage temperature for DC20/20YWA is -30°C to 60°C, with a relative humidity of 60% or less.
Yes, DC20/20YWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to protect the LED from moisture and UV radiation.
The maximum soldering temperature for DC20/20YWA is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, DC20/20YWA is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.
The typical lifespan of DC20/20YWA is 50,000 hours or more, depending on the operating conditions and usage.
