DC37-PL-24 footprint, schematic symbol and 3D model by Adam Tech

Symbol

click to zoom

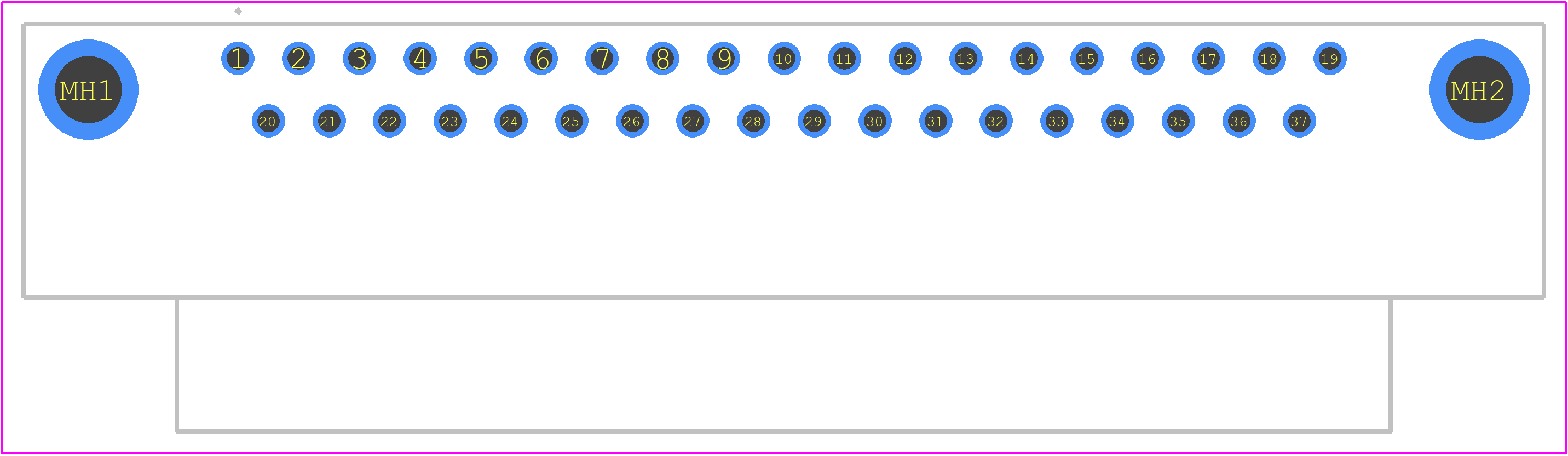

PCB Footprints

DC37-PL-24 - Adam Tech PCB footprint - Other - Other - DC37-PL-24-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DC37-PL-24
Part Number DC37-PL-24
Manufacturer Adam Tech
Pin Count 39
Part Category Connector
Package Category Other
Footprint Name Other - DC37-PL-24-2
Released Date May 27, 2021
Last Modified Date Dec 20, 2025 10:05 AM UTC
Pinout / Pin List Click Here (Member Only)

DC37-PL-24 Details

Manufacturer Part Number:
DC37-PL-24
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Adam Technologies Inc
YTEOL:
8.5
Additional Feature:
ROHS COMPLIANT
Body Breadth:
0.494 inch
Body Depth:
0.488 inch
Body Length:
2.729 inch
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL
Contact Finish Termination:
Gold Flash (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Pattern:
STAGGERED
Contact Resistance:
20 mΩ
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1000VAC V
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mating Contact Pitch:
0.109 inch
Mating Contact Row Spacing:
0.112 inch
Mixed Contacts:
NO
Mounting Option 1:
#4-40
Mounting Option 2:
INSERT
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.8448 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
5 A
Reference Standard:
UL, CSA
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
4/C
Terminal Length:
0.125 inch
Terminal Pitch:
2.7686 mm
Termination Type:
SOLDER
Total Number of Contacts:
37
UL Flammability Code:
94V-0

DC37-PL-24 Frequently Asked Questions (FAQs)

Adam Technologies recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the power traces. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
To ensure reliable operation in high-vibration environments, Adam Technologies recommends securing the DC37-PL-24 with screws or adhesive, and using a conformal coating to protect the device from moisture and contaminants. Additionally, the PCB should be designed with vibration-resistant components and a robust mechanical design.
According to Adam Technologies, the DC37-PL-24 can be derated up to 10% of the maximum rated voltage without compromising its performance or reliability. However, it's recommended to consult with Adam Technologies' application engineers for specific derating requirements based on the application.
Yes, the DC37-PL-24 can be used in parallel to increase power output. However, it's essential to ensure that the devices are properly synchronized and matched to avoid oscillations and uneven current sharing. Adam Technologies recommends consulting their application notes and seeking guidance from their engineers for parallel operation.
Adam Technologies recommends using a combination of common-mode chokes, differential-mode chokes, and X-capacitors to filter EMI. Additionally, a shielded enclosure and proper cable shielding are recommended to minimize radiated emissions. Consult Adam Technologies' application notes for specific EMI filtering and shielding recommendations.
