DC37P-1A7N-K87 - ITT CANNON

Description: D Sub Connector, Right Angle, DB9, Standard, Plug, DC, 37 Contacts, DC, Solder

Download DC37P-1A7N-K87 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

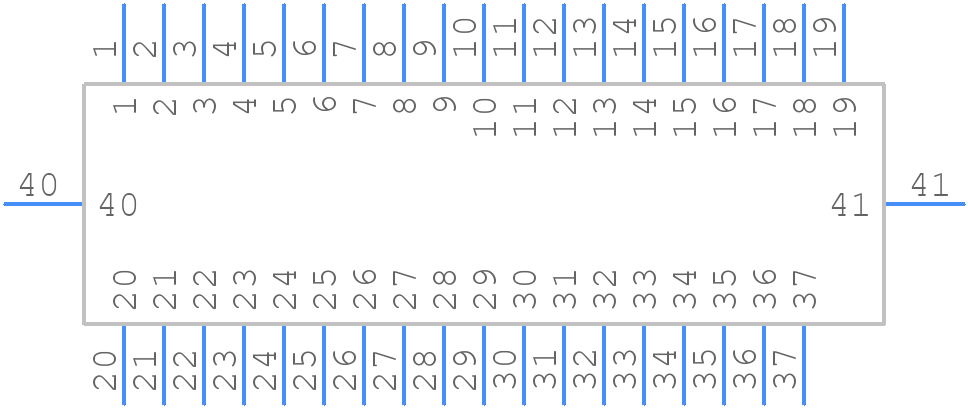

DC37P-1A7N-K87 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

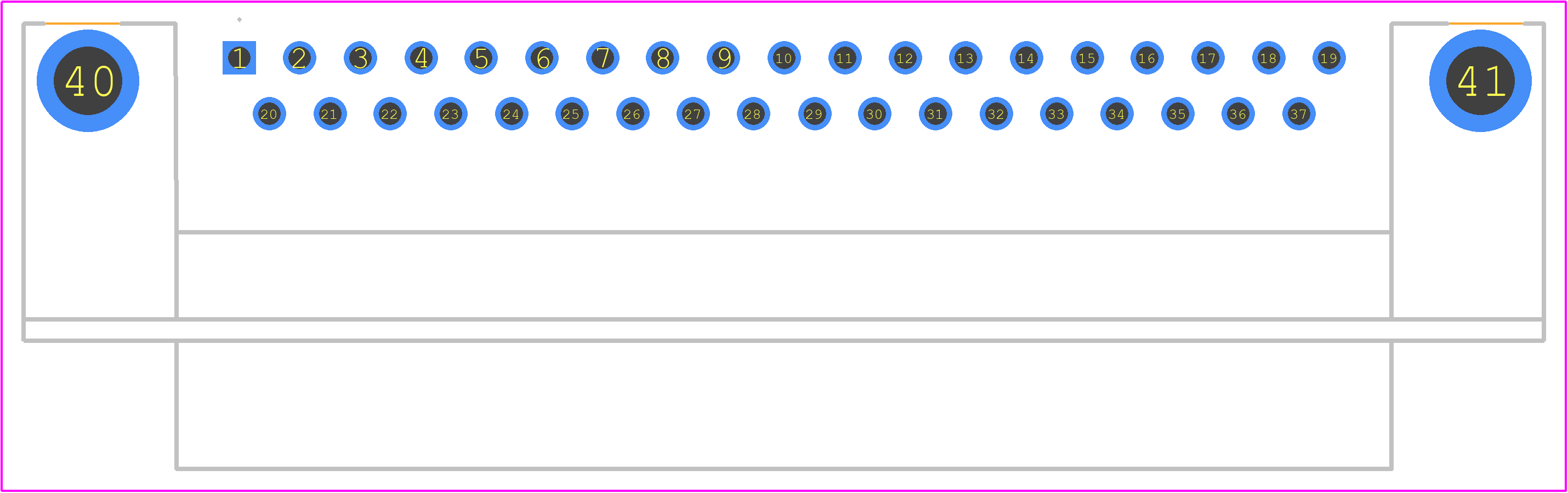

DC37P-1A7N-K87 - ITT CANNON PCB footprint - Other - Other - DC37P-1A7N-K87-1
click to zoom

DC37P-1A7N-K87 Details

  • Manufacturer Part Number:

    DC37P-1A7N-K87

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41652; PANEL MOUNT

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

DC37P-1A7N-K87 Frequently Asked Questions (FAQs)

  • The operating temperature range of the DC-37P-1-A-7-N-K87 connector is -55°C to 125°C.
  • Yes, the DC-37P-1-A-7-N-K87 connector is designed to withstand high-vibration environments, making it suitable for aerospace, defense, and other rugged applications.
  • The DC-37P-1-A-7-N-K87 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the DC-37P-1-A-7-N-K87 connector is designed to operate in harsh environments, including high humidity and salt spray, making it suitable for marine, aerospace, and other demanding applications.
  • The typical insertion force required for the DC-37P-1-A-7-N-K87 connector is 10-15 N (2.2-3.3 lbf) per contact.
