DCP010505BP-U/700 - Texas Instruments

Description: Texas Instruments DCP010505BP-U/700, Isolated, Un-Regulated DC-DC Converter, Adjustable, 4.75 → 5.25 V 7-Pin, SOP

Download DCP010505BP-U/700 Model
Schematic

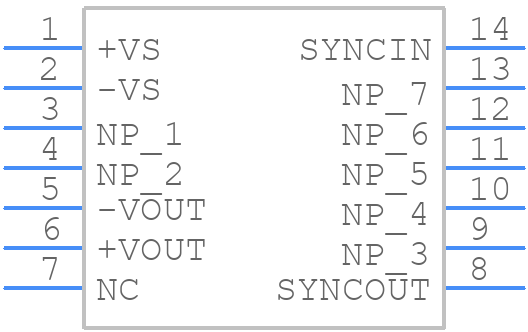

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

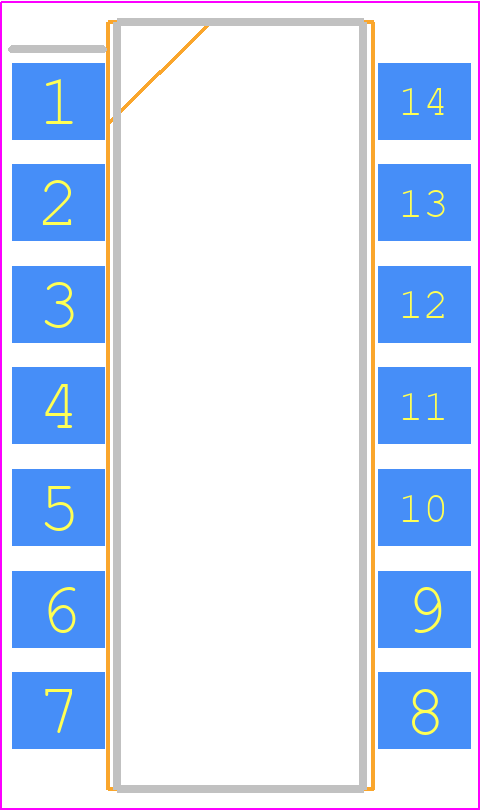

DCP010505BP-U/700 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCP010505BP-U/700-1
click to zoom
3D Models
DCP010505BP-U/700 - Texas Instruments  - 3D model - Small Outline Packages - DCP010505BP-U/700-1
click to zoom

DCP010505BP-U/700 Details

  • Manufacturer Part Number:

    DCP010505BP-U/700

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    SOP-14/7

  • Pin Count:

    14

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G7

  • JESD-609 Code:

    e4

  • Length:

    19.18 mm

  • Line Regulation-Max:

    15%

  • Load Regulation-Max:

    31%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP7/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.007 Vrms

  • Seated Height-Max:

    5.33 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6.605 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCP010505BP-U/700 Overview

Use the download button to access the DCP010505BP-U/700 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP01, or try a keyword search, such as Power Supply Modules

Parts related to DCP010505BP-U/700

Showing 0 results

DCP010505BP-U/700 Alternates

Showing results

Image Part Number Model
Part Image DCP010505BP-U Texas Instruments

Miniature, 1W Isolated Unregulated DC/DC Converters 7-SOP -40 to 100

Part Image DCP010505BP-U/7E4 Texas Instruments

Miniature, 1W Isolated Unregulated DC/DC Converters 7-SOP -40 to 100

Part Image DCP010505P-U Texas Instruments

Miniature 5V Input, 1W Isolated Unregulated DC/DC Converters 7-PDIP
