DCPA10505P-U/700 - Texas Instruments

Description: Miniature, 1W Isolated Unregulated DC/DC Converters

Download ECAD Model

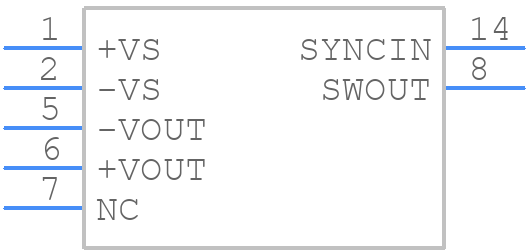

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

DCPA10505P-U/700 - Texas Instruments PCB footprint - Other - Other - DCPA10505P-U/700-1
click to zoom

DCPA10505P-U/700 Details

  • Manufacturer Part Number:

    DCPA10505P-U/700

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP,

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.40.95.80

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.91

  • Samacsys Modified On:

    2020-07-17 06:26:11

  • YTEOL:

    15

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Approvals:

    UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G7

  • JESD-609 Code:

    e4

  • Length:

    19.18 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    THERMAL

  • Ripple Voltage (Main Out):

    0.007 Vrms

  • Seated Height-Max:

    5.33 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6.605 mm
