DCPA10515DP-U/700 footprint, schematic symbol and 3D model by Texas Instruments

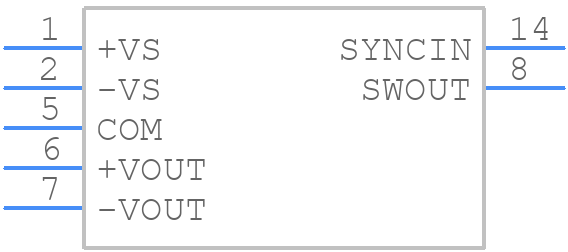

Symbol

click to zoom

PCB Footprints

DCPA10515DP-U/700 - Texas Instruments PCB footprint - Other - Other - DCPA10515DP-U/700-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCPA10515DP-U/700
Part Number DCPA10515DP-U/700
Manufacturer Texas Instruments
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - DCPA10515DP-U/700-1
Released Date Sep 25, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DCPA10515DP-U/700 Details

Manufacturer Part Number:
DCPA10515DP-U/700
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8504.40.95.80
Manufacturer:
Texas Instruments
YTEOL:
15
Additional Feature:
ALSO -15V OUTPUT AVAILABLE
Analog IC - Other Type:
DC-DC UNREGULATED POWER SUPPLY MODULE
Approvals:
UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
86%
Input Voltage-Max:
5.5 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PDMA-G7
JESD-609 Code:
e4
Length:
19.18 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
7
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.033 A
Output Voltage-Max:
15.75 V
Output Voltage-Min:
14.25 V
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
THERMAL
Ripple Voltage (Main Out):
0.007 Vrms
Seated Height-Max:
5.33 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
6.605 mm

DCPA10515DP-U/700 Frequently Asked Questions (FAQs)

Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and airflow management. Additionally, consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
The DCPA10515DP-U/700 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded.
The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and voltage regulators are properly initialized before the device starts operating.
