DCPA10515P - Texas Instruments

Description: Isolated DC/DC Converters - Through Hole Miniature 1W Isolat ed Unregulated DC/DC 4.5V to 5.5V , 66mA , 2kV , 1W , -40°C ~ 100°C

Download DCPA10515P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

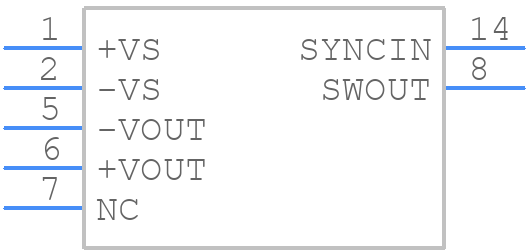

Symbol
DCPA10515P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DCPA10515P - Texas Instruments PCB footprint - Other - Other - NVA (R-PDIP-T7/14)_2025
click to zoom
3D Models
DCPA10515P - Texas Instruments - 3D model - Other - NVA (R-PDIP-T7/14)_2025
click to zoom

DCPA10515P Details

  • Manufacturer Part Number:

    DCPA10515P

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.40.95.80

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Approvals:

    UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    86%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-T7

  • JESD-609 Code:

    e4

  • Length:

    19.18 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.066 A

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    THERMAL

  • Ripple Voltage (Main Out):

    0.007 Vrms

  • Seated Height-Max:

    5.33 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6.605 mm

DCPA10515P Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and adequate airflow. Additionally, consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V.
  • The DCPA10515P has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and voltage regulators are properly initialized before the device starts operating.
