A good PCB layout for the DCR011205U should minimize the loop area of the high-frequency currents, keep the input and output traces separate, and use a solid ground plane to reduce electromagnetic interference (EMI).
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output current, and ambient temperature. Make sure the input voltage is within the recommended range of 4.5V to 5.5V, the output current does not exceed 2A, and the ambient temperature is between -40°C and 85°C.
The DCR011205U has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
The output voltage ripple of the DCR011205U can be calculated using the formula: ΔVout = (Iout * Rl) / (f * C), where ΔVout is the output voltage ripple, Iout is the output current, Rl is the load resistance, f is the switching frequency, and C is the output capacitance.
To minimize EMI, use a shielded enclosure, keep the input and output cables separate, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure the PCB layout is optimized for EMI reduction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCR011205U Overview

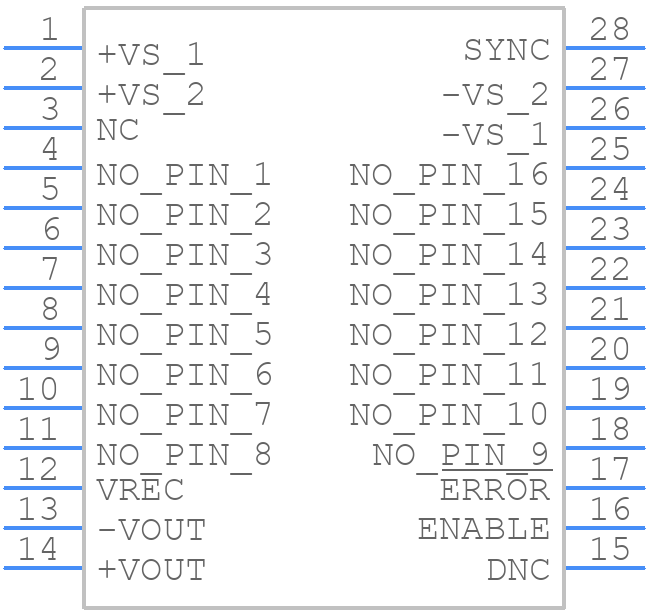

Use the download button to access the DCR011205U schematic symbol, PCB footprint, and 3D model.
