DD-12HWB - Kingbright

Description: Red bar graph 12 segment 1400mcd, PK

Download DD-12HWB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

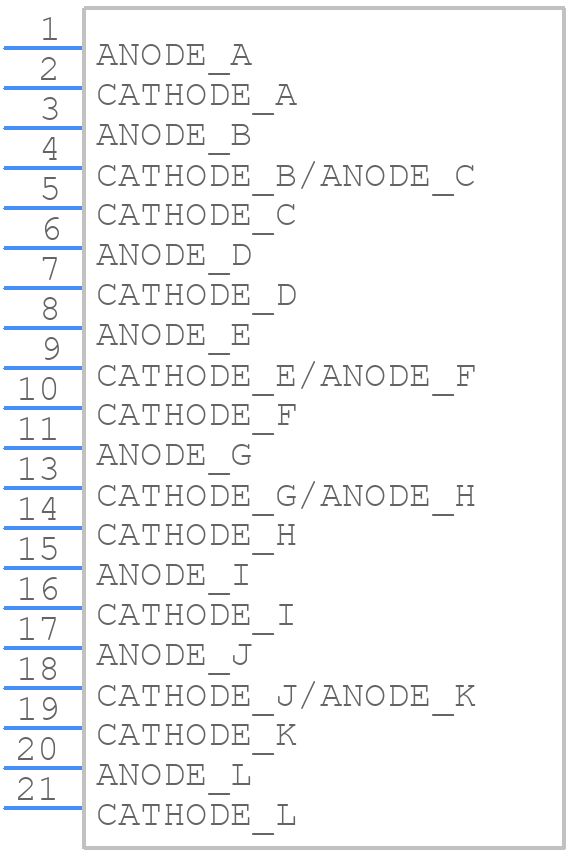

DD-12HWB - Kingbright - PCB symbol
click to zoom
PCB Footprints

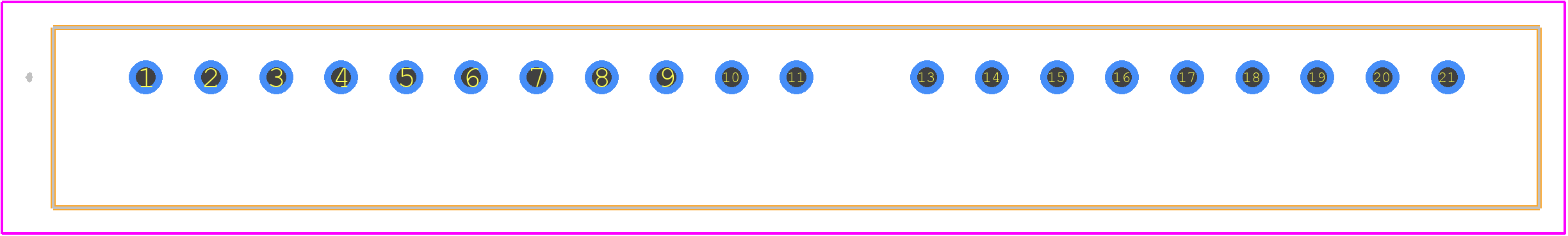

DD-12HWB - Kingbright PCB footprint - Other - Other - DD-12HWB-2
click to zoom
3D Models
DD-12HWB - Kingbright - 3D model - Other - DD-12HWB-2
click to zoom

DD-12HWB Details

  • Manufacturer Part Number:

    DD-12HWB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0

  • Color:

    BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Min:

    0.0009 cd

  • Luminous Intensity-Nom:

    1.4 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    12

  • Number of LEDs in Array:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    700 nm

  • Shape:

    RECTANGULAR

  • Size:

    4 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm
