DD12GWB - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 12 Wide, SIP Green Diffused, White 2.2V 20mA Rectangle with Flat Top 56.00mm x 5.00mm Through Hole

Download DD12GWB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

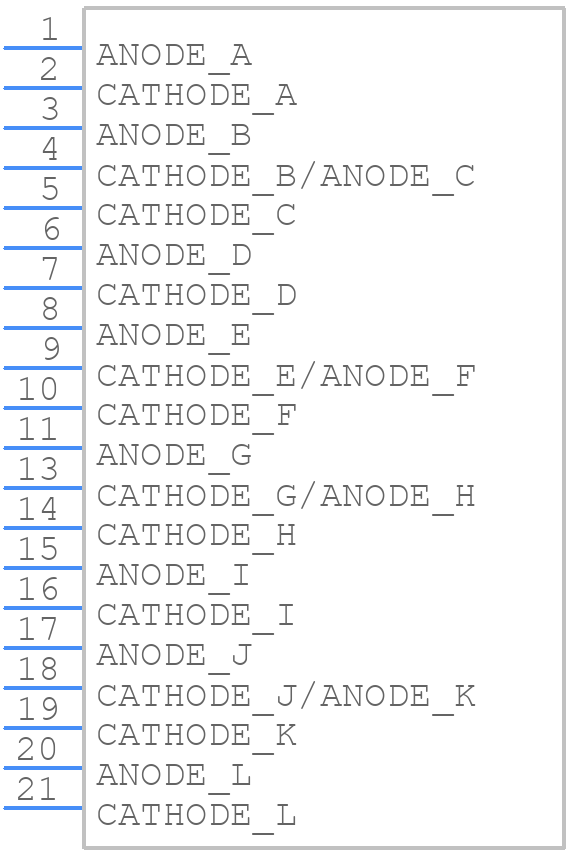

DD12GWB - Kingbright - PCB symbol
click to zoom
PCB Footprints

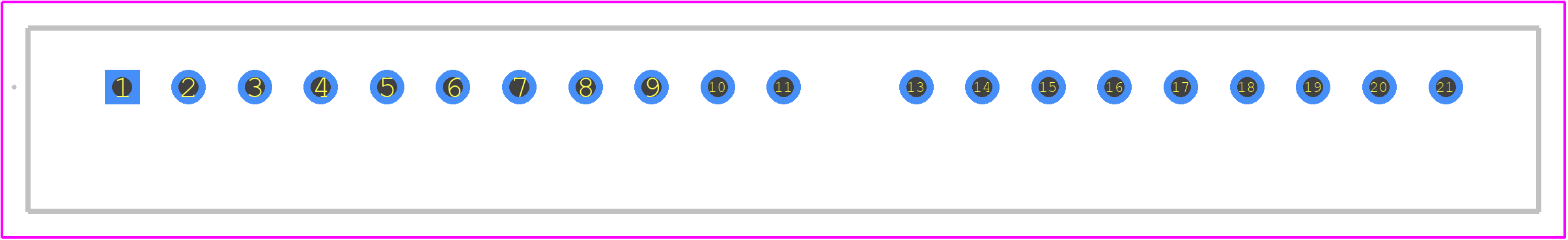

DD12GWB - Kingbright PCB footprint - Other - Other - DD12GWB
click to zoom
3D Models
DD12GWB - Kingbright - 3D model - Other - DD12GWB
click to zoom

DD12GWB Details

  • Manufacturer Part Number:

    DD12GWB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-21

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • Color:

    GREEN

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Lens Type:

    DIFFUSED WHITE

  • Luminous Intensity-Nom:

    5600.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    12

  • Number of Terminals:

    21

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    8 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    4 mm

  • Surface Mount:

    NO

  • Terminal Pitch:

    2.54 mm

DD12GWB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DD12GWB is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
  • The DD12GWB can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The display requires a 5V power supply and can be controlled using a 3.3V or 5V logic level.
  • The typical current consumption of the DD12GWB is around 20mA to 30mA, depending on the brightness setting and the number of segments turned on.
  • The DD12GWB is suitable for indoor use only. If you need an outdoor display, consider using a display with a higher brightness rating and UV-resistant materials.
  • The brightness of the DD12GWB can be adjusted by applying a PWM signal to the display's enable pin or by using an external resistor to adjust the current limiting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD12GWB Overview

Use the download button to access the DD12GWB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD12G, or try a keyword search, such as Visible LEDs
