DD62S4R7000/AA - Positronic

Description: 62 Position D-Sub, High Density Receptacle, Female Sockets Connector

Download DD62S4R7000/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DD62S4R7000/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

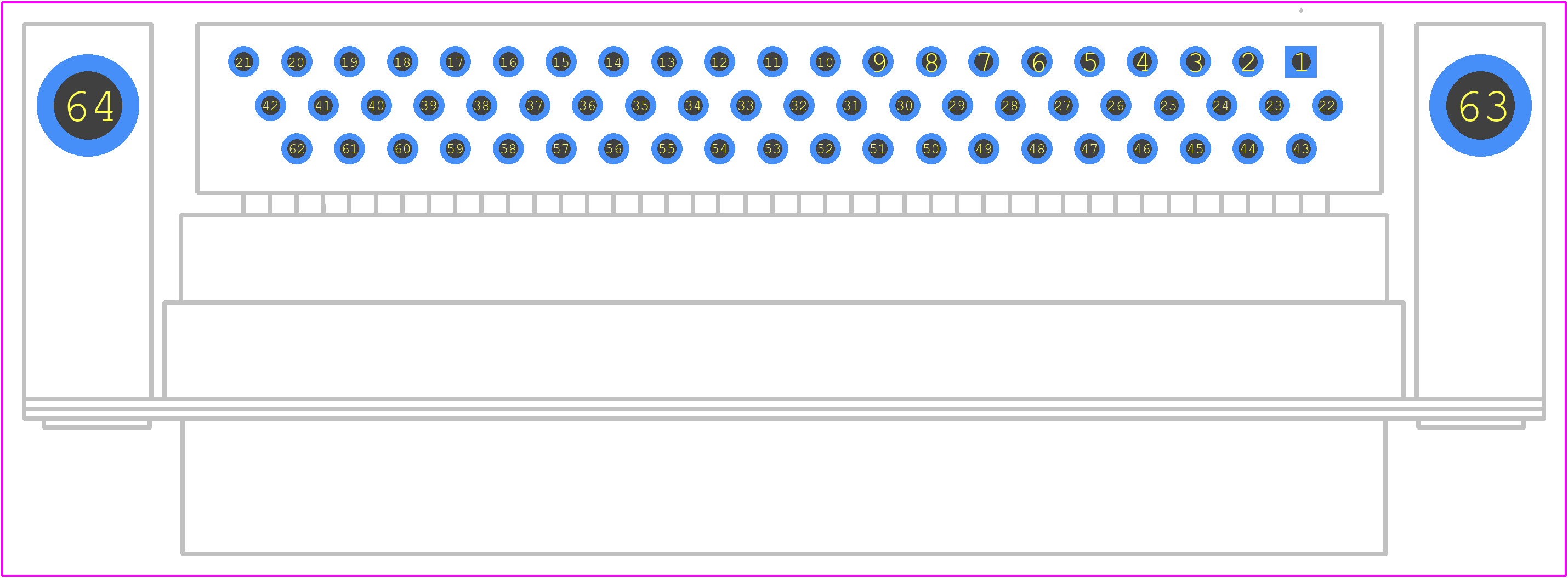

DD62S4R7000/AA - Positronic PCB footprint - Other - Other - DD62S4R7000/AA-2
click to zoom

DD62S4R7000/AA Details

  • Manufacturer Part Number:

    DD62S4R7000/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

DD62S4R7000/AA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure connections.
  • Yes, the DD62S4R7000/AA is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the DD62S4R7000/AA is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
  • The DD62S4R7000/AA has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the DD62S4R7000/AA can accommodate wire sizes ranging from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD62S4R7000/AA Overview

Use the download button to access the DD62S4R7000/AA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DD62S, or try a keyword search, such as D Type Connectors
