DDC112U/1K - Texas Instruments

Description: Analog to Digital Converters - ADC Dual Current Input 20-Bit

Download DDC112U/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

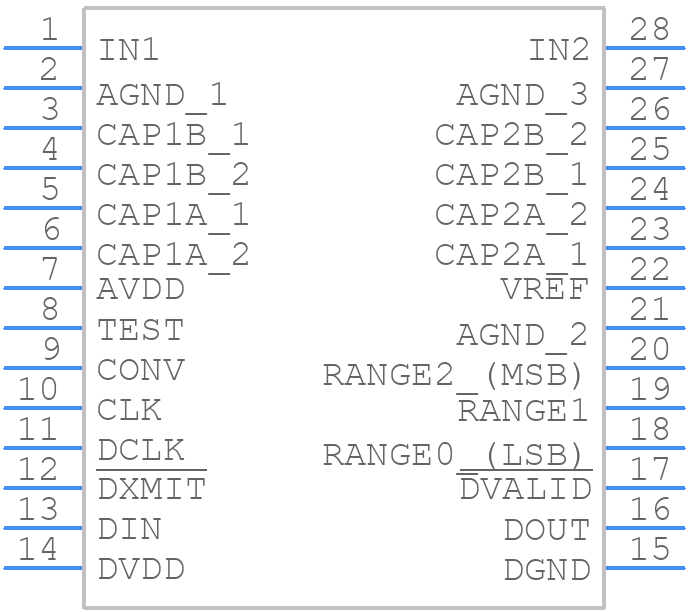

DDC112U/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DDC112U/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
DDC112U/1K - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

DDC112U/1K Details

  • Manufacturer Part Number:

    DDC112U/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Conversion Time-Max:

    220 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.025%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.002 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DDC112U/1K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces and avoid vias under the device to minimize noise and signal degradation.
  • Use a low-pass filter or a ferrite bead in series with the power supply to reduce high-frequency noise. Additionally, use a decoupling capacitor between the power supply and ground to filter out high-frequency noise.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up correctly and prevents damage to the device.
  • Use a heat sink or a thermal pad to dissipate heat, and ensure good airflow around the device. Additionally, reduce the clock frequency and adjust the power supply voltage to minimize power consumption and heat generation.
  • Use a logic analyzer or an oscilloscope to monitor the digital signals and verify the correct operation of the device. Additionally, use the built-in diagnostic features of the device, such as the error flags and status registers, to identify and troubleshoot issues.
