A good PCB layout for the DDC112Y/250 involves separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, keeping the input and output traces short and away from each other can help reduce noise.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range.
The recommended power-up sequence for the DDC112Y/250 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent damage to the device and ensures proper operation.
To minimize EMI, use a low-inductance path for the digital outputs, keep the output traces short, and use a common-mode choke or ferrite bead to filter the output signals. Additionally, consider using a shielded cable or a twisted pair to connect the digital outputs to the receiving device.
The maximum allowed input voltage range for the DDC112Y/250 is ±10V. To protect the device from overvoltage, use a voltage limiter or a clamp circuit to prevent input voltages exceeding the maximum rating. Additionally, consider using a voltage regulator or a voltage divider to regulate the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DDC112Y/250 Overview

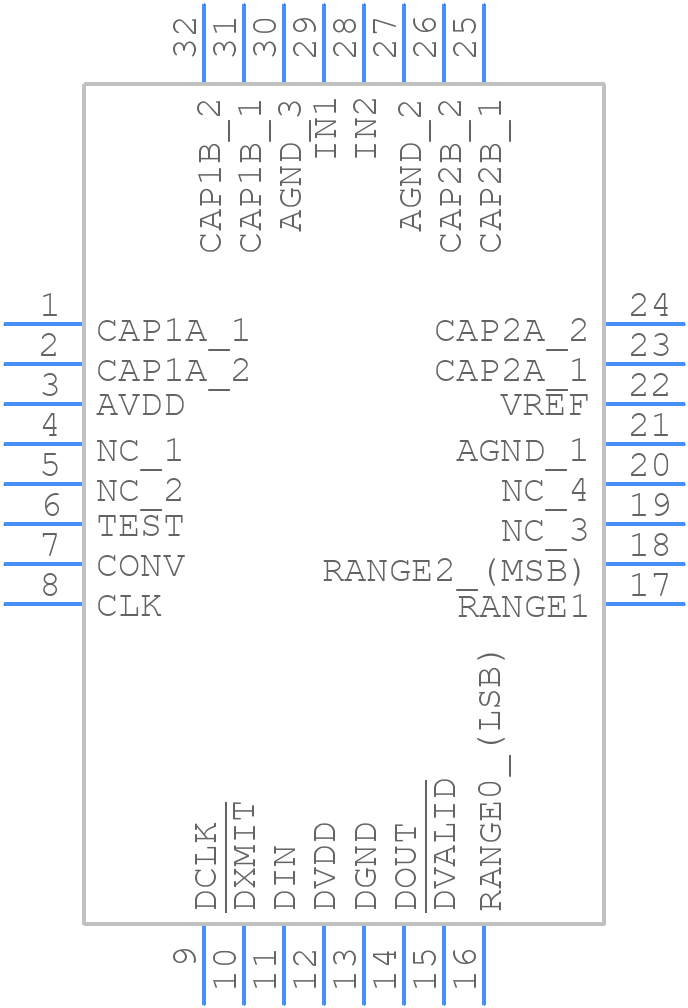

Use the download button to access the DDC112Y/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DDC11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
