DDC114IRTCR - Texas Instruments

Description: Quad Channel Dual ADC Delta-Sigma 3.125ksps 20-bit Serial 48-Pin VQFN EP T/R

Download DDC114IRTCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

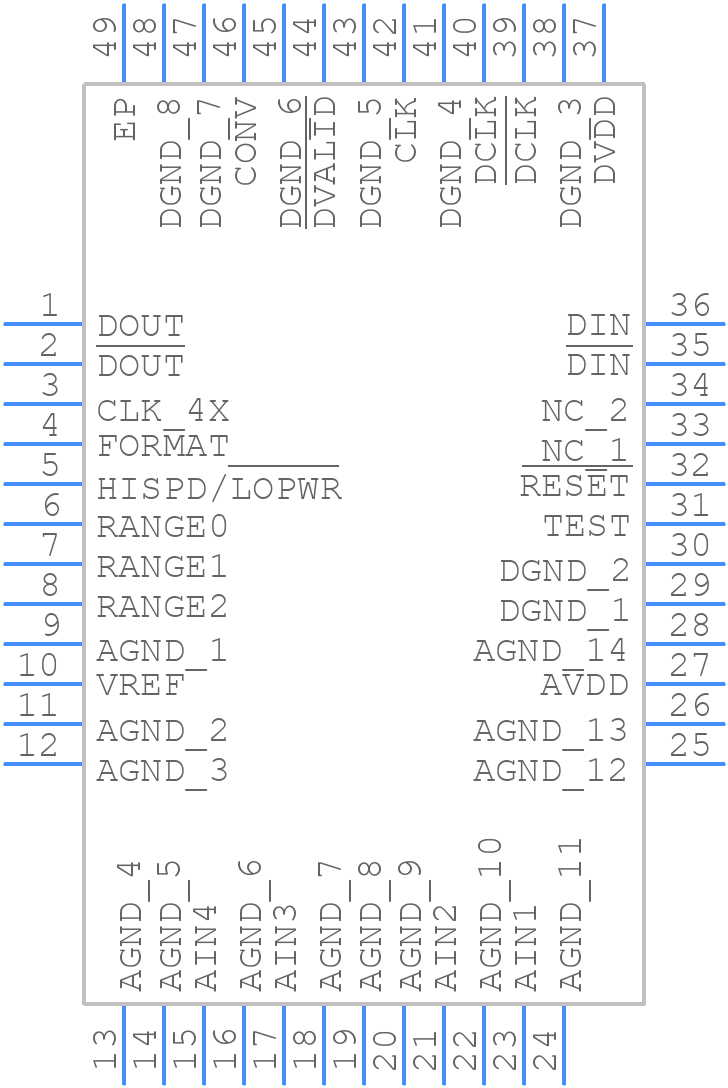

DDC114IRTCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DDC114IRTCR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTC (S-PVQFN-N48)
click to zoom
3D Models
DDC114IRTCR - Texas Instruments - 3D model - Quad Flat No-Lead - RTC (S-PVQFN-N48)
click to zoom

DDC114IRTCR Details

  • Manufacturer Part Number:

    DDC114IRTCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.025%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.003125 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DDC114IRTCR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAA738, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Calibration of the DDC114IRTCR involves adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the datasheet, which involves measuring the output voltage at different input currents and adjusting the registers accordingly.
  • The maximum input current that the DDC114IRTCR can handle is 10 mA. Exceeding this limit can damage the device. It is recommended to use an external current-limiting resistor to prevent overcurrent conditions.
  • Yes, the DDC114IRTCR can be used with photodiodes that have different responsivities. However, the gain and offset registers may need to be adjusted to compensate for the difference in responsivity. Texas Instruments provides a formula in the datasheet to calculate the required gain and offset adjustments.
  • The DDC114IRTCR has a digital output that can be interfaced with a microcontroller or FPGA using a serial communication protocol such as SPI or I2C. Texas Instruments provides example code and interface diagrams in the datasheet and application notes to facilitate the interface design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DDC114IRTCR Overview

Use the download button to access the DDC114IRTCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DDC11, or try a keyword search, such as Analog to Digital Converters
