A good PCB layout for the DDC114IRTCT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
Optimizing gain and offset calibration for the DDC114IRTCT involves adjusting the internal gain and offset registers to match the specific application requirements. This can be done by using the device's built-in calibration modes and adjusting the registers based on the measured output values.
The recommended power-up sequence for the DDC114IRTCT involves applying the analog power supply (AVDD) before the digital power supply (DVDD), and ensuring that the digital power supply is stable before applying the clock signal.
The DDC114IRTCT's output data format and word length can be configured using the device's control registers. The output data format can be set to either two's complement or offset binary, and the word length can be set to 16, 18, or 20 bits, depending on the specific application requirements.
Thermal management considerations for the DDC114IRTCT involve ensuring good airflow around the device, using a heat sink if necessary, and avoiding high temperatures that can affect the device's performance and reliability. The device's thermal characteristics can be found in the datasheet, and should be taken into account during system design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DDC114IRTCT Overview

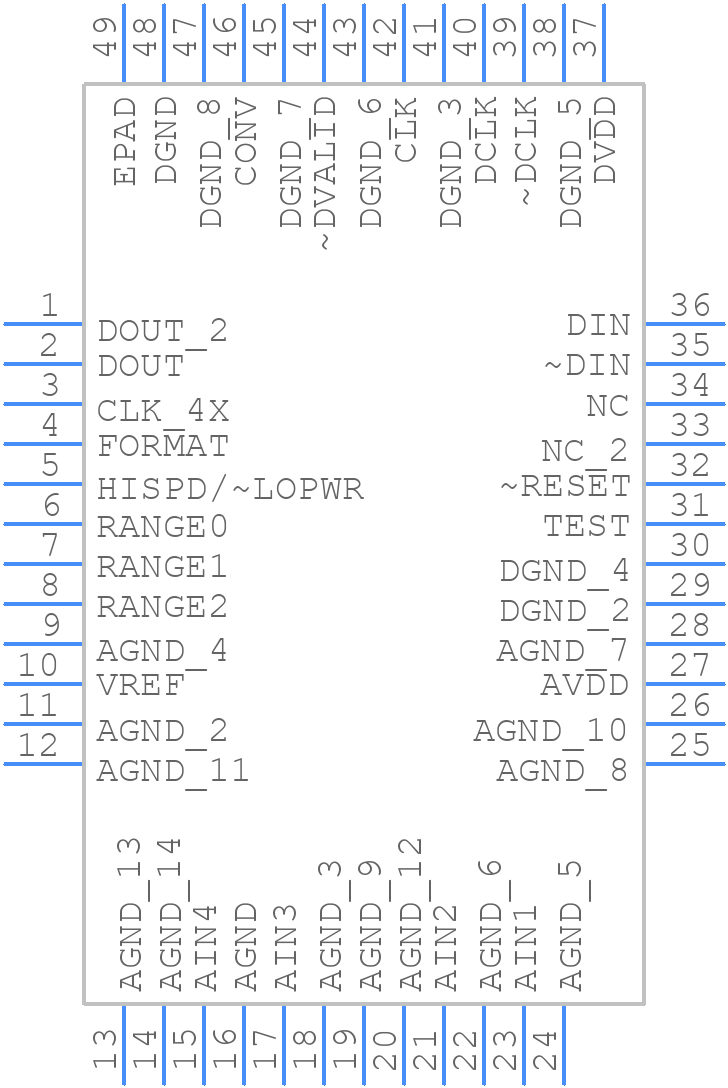

Use the download button to access the DDC114IRTCT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DDC11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
