DDC118IRTCT - Texas Instruments

Description: Octal Current-Input 20-Bit Analog-to-Digital Converter

Download DDC118IRTCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

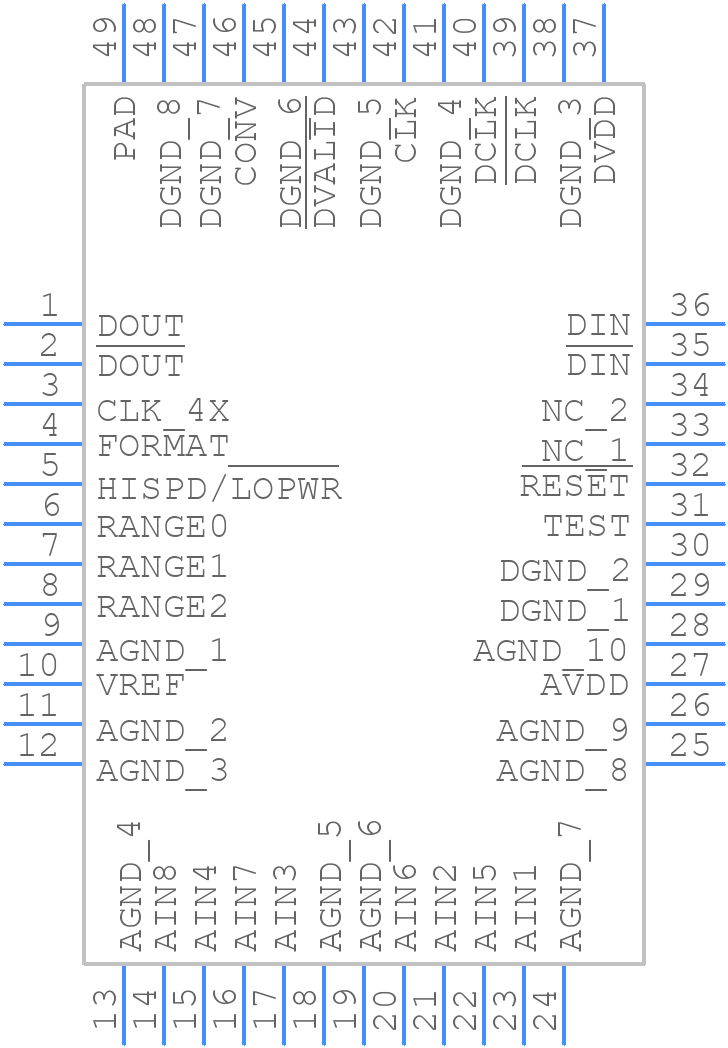

Symbol
DDC118IRTCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DDC118IRTCT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFN Exposed Pad
click to zoom
3D Models
DDC118IRTCT - Texas Instruments - 3D model - Quad Flat No-Lead - 48-VFQFN Exposed Pad
click to zoom

DDC118IRTCT Details

  • Manufacturer Part Number:

    DDC118IRTCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.025%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.003125 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DDC118IRTCT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference. Additionally, it's recommended to use a 10nF capacitor between the VDD and GND pins to filter out noise.
  • To optimize performance in a noisy environment, use a low-pass filter on the input signal, and consider using a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, use a high-quality power supply and decouple the power supply lines with capacitors to reduce noise.
  • The maximum clock frequency that can be used with the DDC118IRTCT is 100 MHz. However, the actual clock frequency used may need to be adjusted based on the specific application and noise environment.
  • The DDC118IRTCT outputs 18-bit data in a serial format. The output data can be handled using a microcontroller or FPGA, and can be processed using digital signal processing techniques such as filtering and averaging to improve accuracy.
  • The power consumption of the DDC118IRTCT is typically around 15mA at 3.3V supply voltage. However, the actual power consumption may vary depending on the specific application and operating conditions.
