DF3SYKD - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Yellow Diffused, Tinted 2V 175mA Rectangle with Flat Top 19.90mm x 6.80mm Through Hole

Download DF3SYKD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DF3SYKD model

Email notifications will be applied after download.

Send part feedback

Symbol

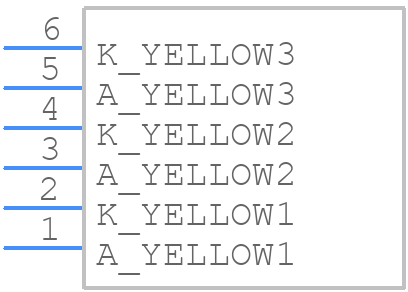

DF3SYKD - Kingbright - PCB symbol

PCB Footprints

DF3SYKD - Kingbright PCB footprint - Other - Other - 19.90mm x 6.80mm x 6.4mm

3D Models

DF3SYKD - Kingbright - 3D model - Other - 19.90mm x 6.80mm x 6.4mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF3SYKD
Part Number DF3SYKD
Manufacturer Kingbright
Pin Count 6
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 19.90mm x 6.80mm x 6.4mm
Released Date Jan 22, 2026
Last Modified Date Jan 22, 2026 8:49 AM UTC
Pinout / Pin List Click Here (Member Only)

DF3SYKD Details

Manufacturer Part Number:
DF3SYKD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
19.90 X 6.80 MM, ROHS COMPLIANT PACKAGE-6
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
7
Color:
SUPER BRIGHT YELLOW
Configuration:
SEPARATE, 3 ELEMENTS
Forward Current-Max:
0.03 A
Lens Type:
DIFFUSED YELLOW
Luminous Intensity-Nom:
1100.0 mcd
Mounting Feature:
RADIAL MOUNT
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED
Overall Height:
6.4 mm
Packing Method:
TUBE
Peak Wavelength:
590 nm
Shape:
RECTANGULAR
Size:
18.9 mm
Surface Mount:
NO
Terminal Pitch:
2.54 mm

DF3SYKD Frequently Asked Questions (FAQs)

The recommended storage temperature for DF3SYKD is -20°C to 60°C, as specified by Kingbright.
While the DF3SYKD is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
The maximum soldering temperature for the DF3SYKD is 260°C for 3 seconds, as specified by Kingbright.
Yes, the DF3SYKD is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The typical lifespan of the DF3SYKD is around 50,000 hours, depending on operating conditions and usage.
