DGH305Q2R7 - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 3F 2.7V 30%/-10% Radial

Download DGH305Q2R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DGH305Q2R7 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

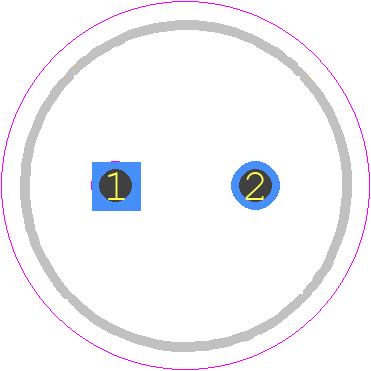

DGH305Q2R7 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8*20
click to zoom
3D Models
DGH305Q2R7 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 8*20
click to zoom

DGH305Q2R7 Details

  • Manufacturer Part Number:

    DGH305Q2R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    3000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

DGH305Q2R7 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DGH305Q2R7 is 260°C (500°F) for 10 seconds or less.
  • Yes, the DGH305Q2R7 is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
  • The ESR of the DGH305Q2R7 is typically around 0.02 ohms at 100 kHz.
  • Yes, the DGH305Q2R7 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
  • The shelf life of the DGH305Q2R7 is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal environmental conditions.
